Single-phase AC power cabling

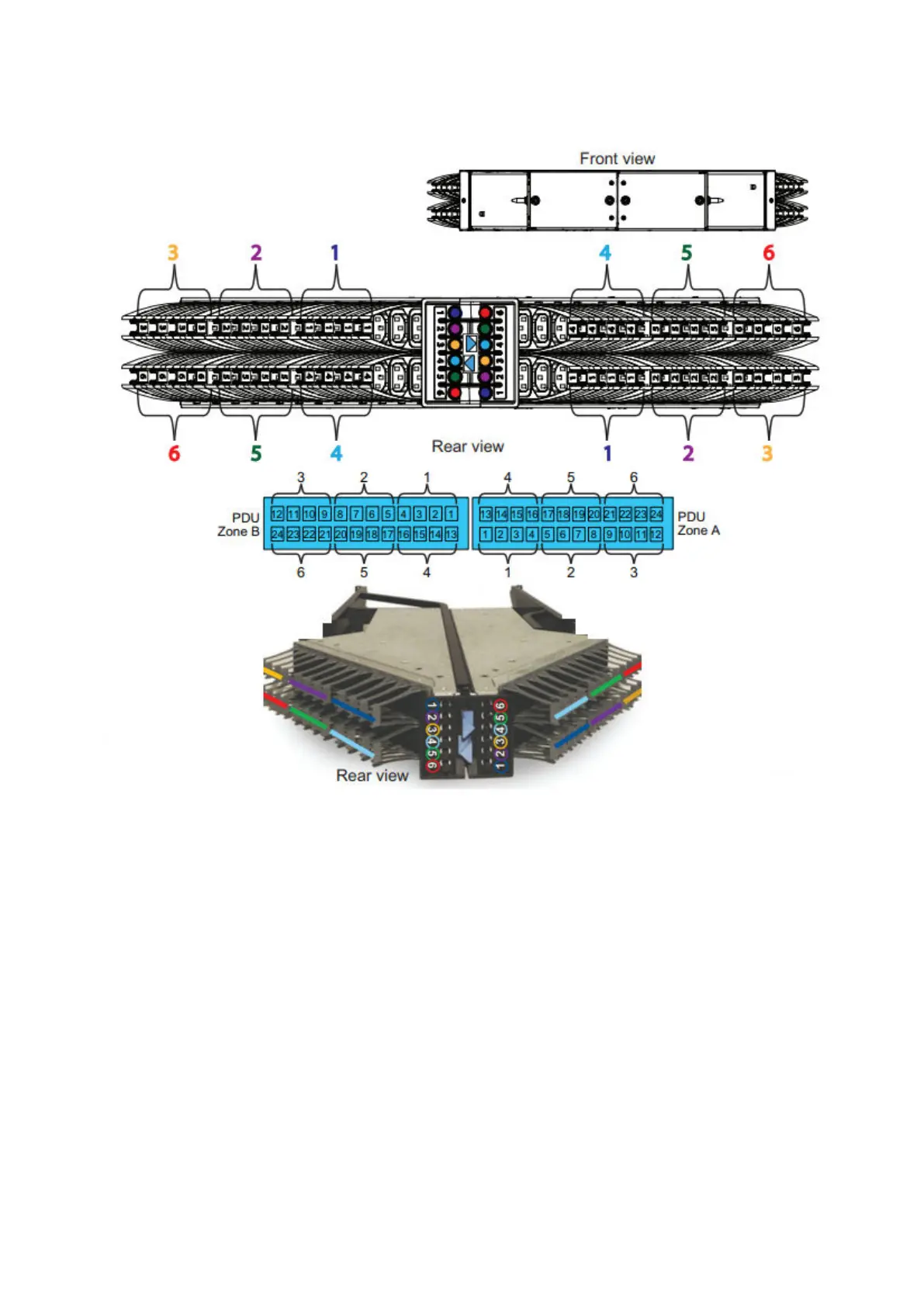

Figure 114. PDU single-phase diagram
Each EX3000 install kit contains 93" black and gray power cords and 118" gray and black power cords. The 93'' and 118" cords
are sent with third party and Dell EMC expansion nodes. However, Dell EMC racks are shipped from the factory with 93"
AC cables. You should only use the appropriate length cable per the cabinet position being installed as shown in the following
diagrams. EX3000 systems shipped for a third party rack require the extra 118" cables while Dell EMC racks only need the 93"
cables. After you complete the power cabling for the EX3000 appliance, you will always have an extra pair of unused power
cords. In the following diagram, the switches plug into the front of the rack and route through the rails to the rear.
