EXF900 iDRAC cabling

Provides wiring diagrams for the iDRAC cables that connect the iDRAC port on the node to the Fox back-end switch.

The Fox switch (BE1) port numbers used for connecting to the iDRAC ports on the EXF900 nodes are shown in the following

diagram.

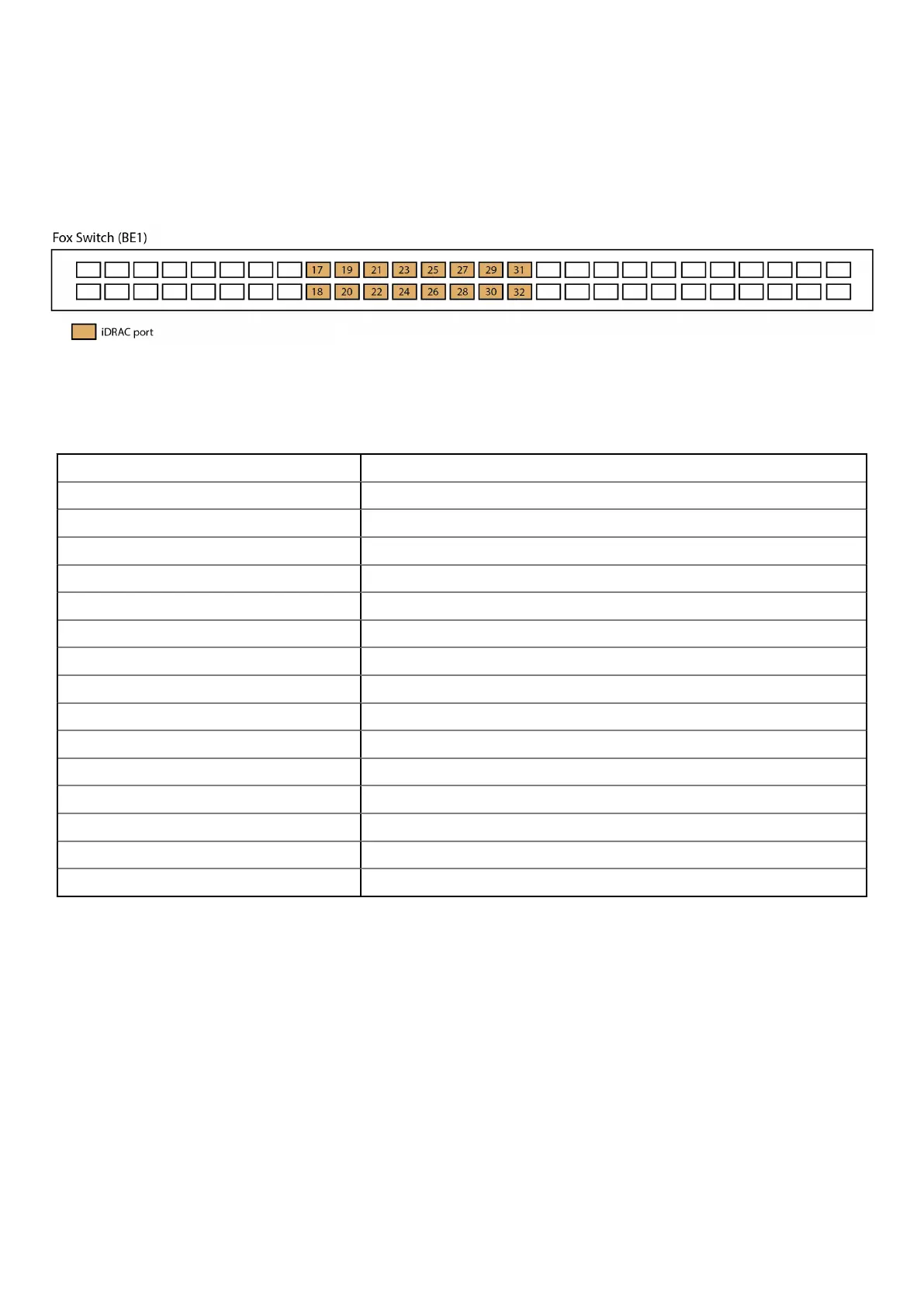

Figure 33. Fox switch iDRAC ports

The EXF900 node iDRAC port to the Fox switch (BE1) port connections are listed in the following table.

Table 21. EXF900 node iDRAC port to BE1 port mapping

Node 1 iDRAC port BE1 Port 17

Node 2 iDRAC port BE1 Port 18

Node 3 iDRAC port BE1 Port 19

Node 4 iDRAC port BE1 Port 20

Node 5 iDRAC port BE1 Port 21

Node 6 iDRAC port BE1 Port 22

Node 7 iDRAC port BE1 Port 23

Node 8 iDRAC port BE1 Port 24

Node 9 iDRAC port BE1 Port 25

Node 10 iDRAC port BE1 Port 26

Node 11 iDRAC port BE1 Port 27

Node 12 iDRAC port BE1 Port 28

Node 13 iDRAC port BE1 Port 29

Node 14 iDRAC port BE1 Port 30

Node 15 iDRAC port BE1 Port 31

Node 16 iDRAC port BE1 Port 32

Figure 34. EXF900 iDRAC cabling
