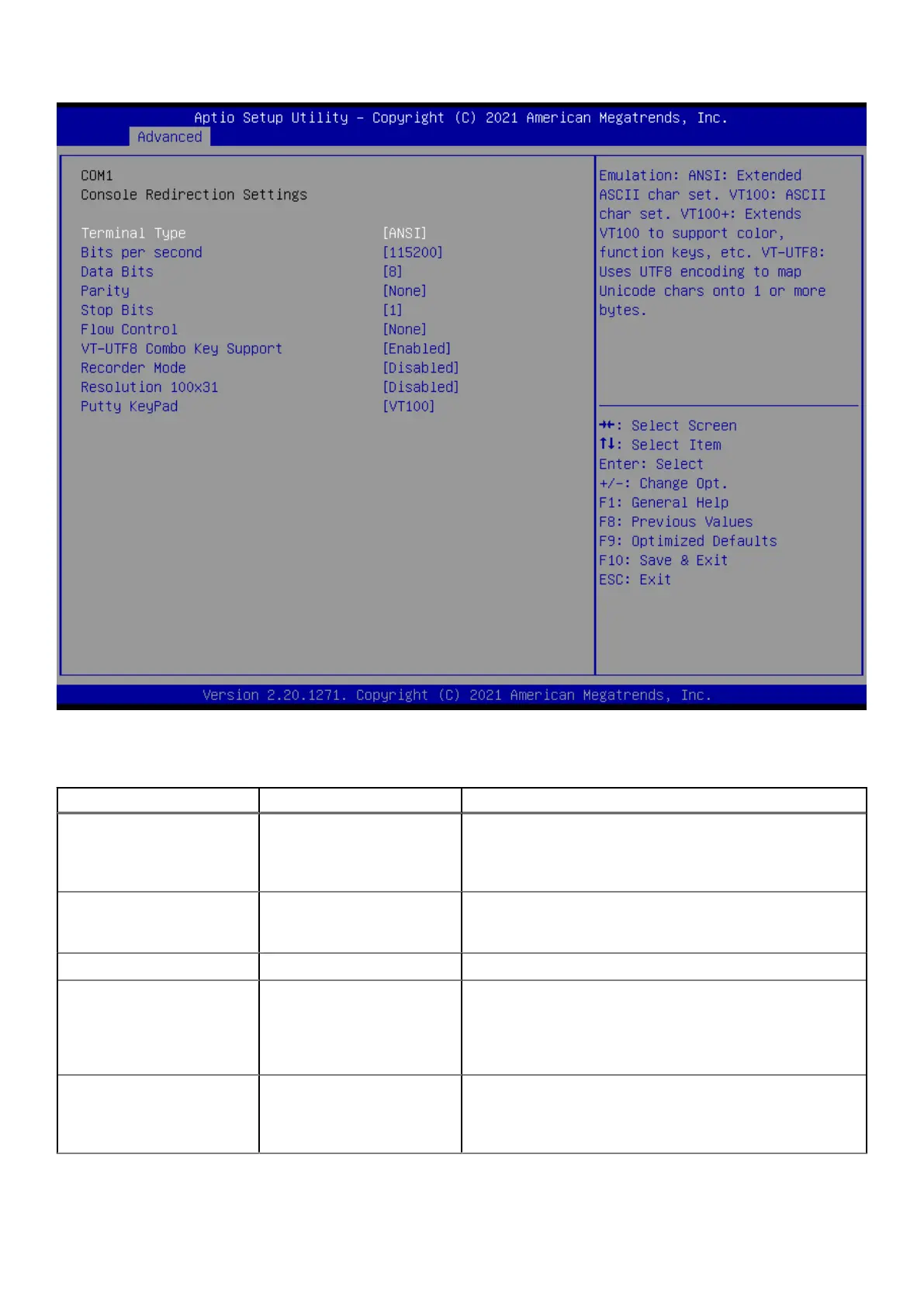

Figure 33. Console Redirection COM1
Table 26. Console Redirection COM1
Parameter Settings Description
Terminal Type VT100, VT100+, VT-UTF8,
ANSI
Emulation: ANSI: Extended ASCII character set. VT100: ASCII
character set. VT100+: Extends VT100 to support color,
function keys, and so on. VT-UTF8: Uses UTF8 encoding to
map Unicode characters onto one or more bytes.
Bits per second 9600, 19200, 38400, 57600,
115200
Selects serial port transmission speed. The speed must be
matched on the other side. Long or noisy lines may require
lower speeds.
Data Bits 7, 8 Data Bits.
Parity None, Even, Odd, Mark,
Space
A parity bit can be sent with the data bits to detect some
transmission errors. Even: parity bit is 0 if the number of 1s in
the data bits is even. Odd: parity bit is 0 if number of 1s in the
data bits is odd. Mark: parity bit is always 1. Space: Parity bit
is always 0.
Stop Bits 1, 2 Stop bits indicate the end of a serial data packet (a start bit
indicates the beginning). The standard setting is one stop bit.
Communication with slow devices may require more than one
stop bit.
