NOTE: For more information about the indicator codes, see the System diagnostics and indicator codes section.
Rear view of the system

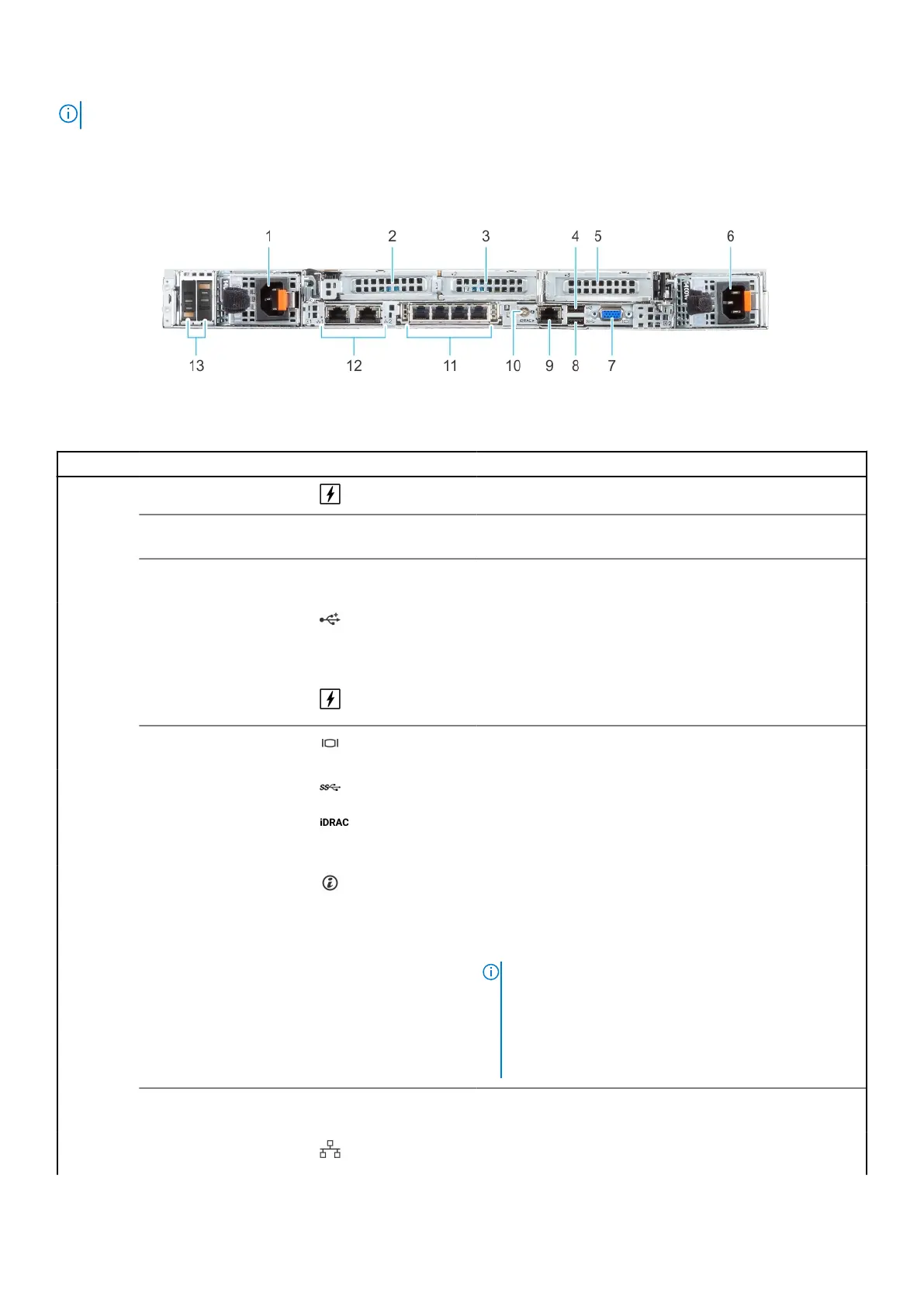

Figure 5. Rear view of the system with 3 x LP PCIe slots
Table 4. Rear view of the system with 3 x LP PCIe slots
Item Ports, panels, or slots Icon Description
1 Power supply unit (PSU 1) Indicates the PSU.
2
PCIe expansion card riser
(slot 1)
N/A The expansion card riser enables you to connect PCI
Express expansion cards.
3
PCIe expansion card riser
(slot 2)
N/A The expansion card riser enables you to connect PCI
Express expansion cards.
4 USB 2.0 port (1) This port is USB 2.0-compliant.
5 PCIe expansion card riser
(slot 3)
N/A The expansion card riser enables you to connect PCI
Express expansion cards.
6 Power supply unit (PSU
2)
Indicates the PSU.
7
VGA port (on STD RIO
board)
Enables you to connect a display device to the system.
8 USB 3.0 port (1) This port is USB 3.0-compliant.
9 iDRAC dedicated port Enables you to remotely access iDRAC. For more
information, see the iDRAC User's Guide at www.dell.com/
poweredgemanuals.
10 System identification
button
Press the system ID button:
● To locate a particular system within a rack.
● To turn the system ID on or off.
To reset iDRAC, press and hold the button for more than 16
seconds.
NOTE:
● To reset iDRAC using system ID, ensure that the
system ID button is enabled in the iDRAC setup.
● If the system stops responding during POST, press
and hold the system ID button (for more than 5
seconds) to enter the BIOS progress mode.
11
OCP NIC port (optional) N/A This port supports OCP 3.0. The NIC ports are integrated
on the OCP card which is connected to the system board.
12 NIC port (2) The NIC ports are embedded on the LOM card that is
connected to the system board.
Dell Technologies XC650 system overview 11
