Table 4. Rear view of the system with 3 x LP PCIe slots (continued)
Item Ports, panels, or slots Icon Description
13 BOSS S2 module
(optional)
N/A This slot supports the BOSS S2 module.
Inside the system

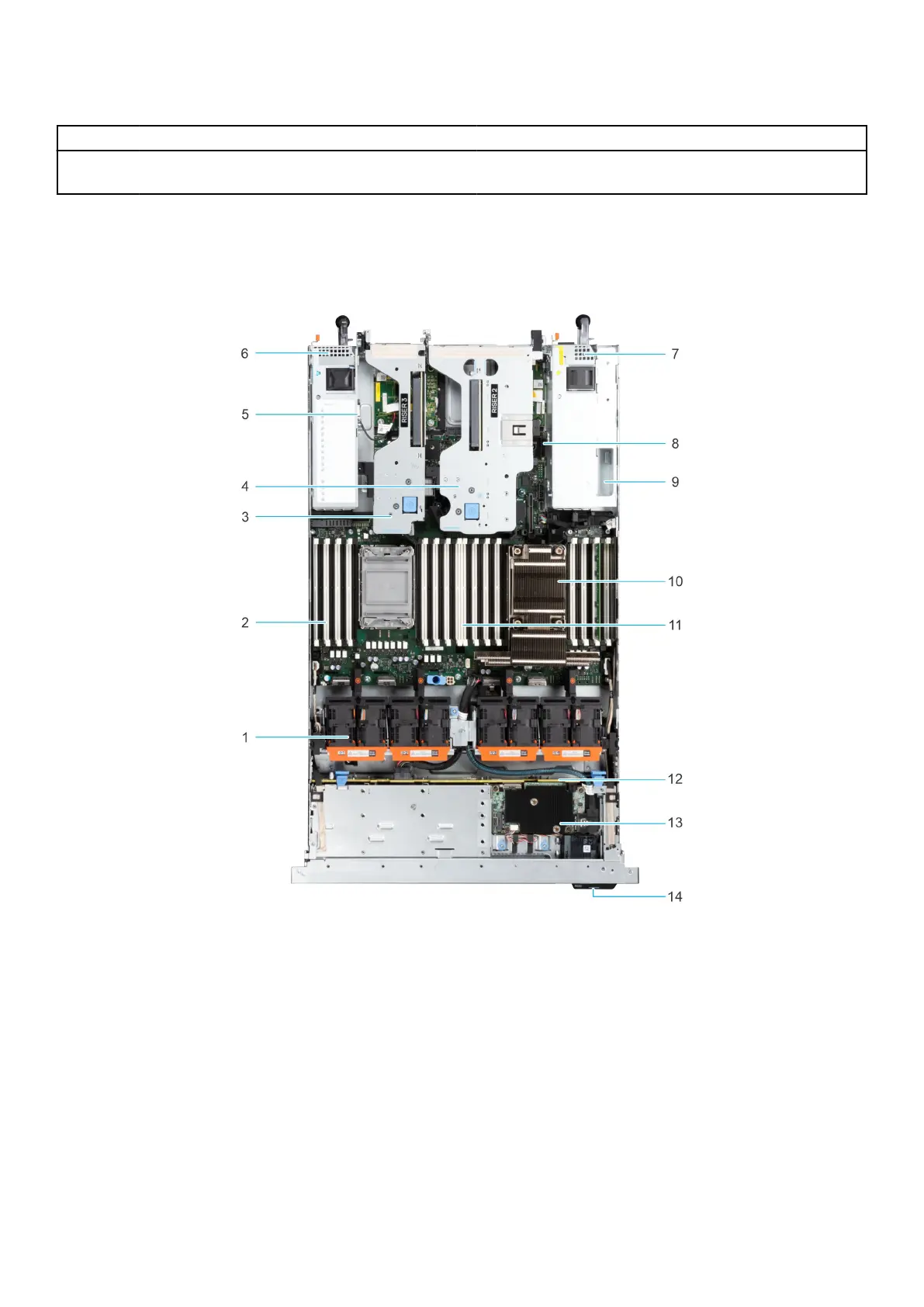

Figure 6. Inside the system with front mounting fPERC
1.
Cooling fan 2. Memory DIMM socket for processor 2 (B2)
3. Riser 3 4. Riser 2
5. Intrusion switch 6. Power supply unit (PSU 2)
7. Power supply unit (PSU 1) 8. IDSDM/Internal USB card port (N/A)
9. BOSS S2 module 10. Heat sink for processor 1
11. Memory DIMM socket for processor 1 (A6) 12. Drive backplane
13. fPERC 14. Service Tag
12 Dell Technologies XC650 system overview
