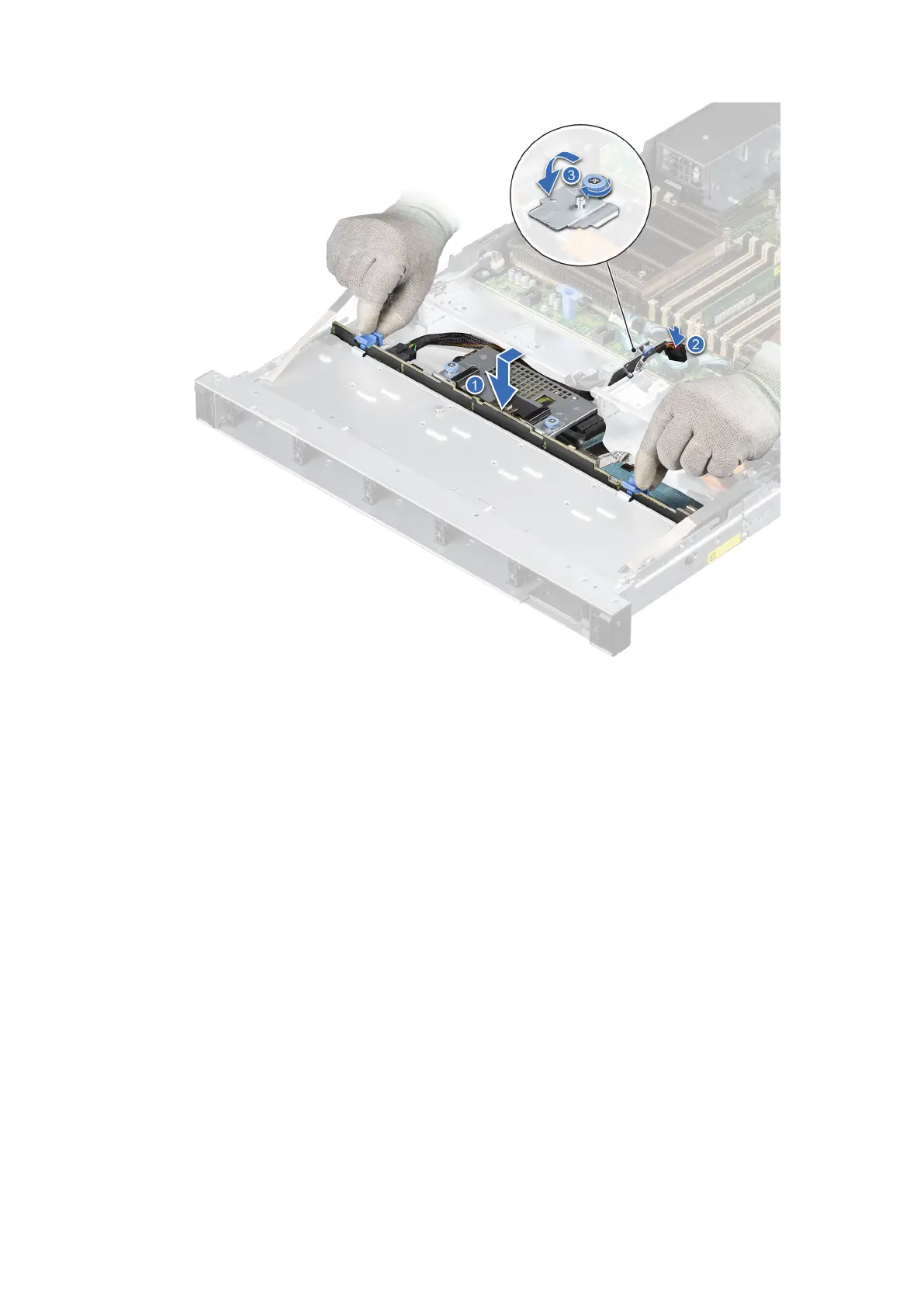

Figure 32. Installing the drive backplane
3. Route the cables properly through the cable guide and connect the cables to the connector on the system board. Tighten
the captive screw on the cable guiding latch.
Next steps
1. Install all of the drives.
2. If removed, install the air shroud.
3. Install the drive backplane cover.
4. Follow the procedure listed in After working inside your system.
Rear mounting front PERC module
Removing the front mounting front PERC module
Prerequisites
1. Follow the safety guidelines listed in the Safety instructions.
2. Follow the procedure listed in Before working inside your system.
3. Remove the drive backplane cover.
4. If installed, remove the air shroud.
5. Disconnect the SAS cable from PERC, observe the cable routing.
44
Installing and removing system components
