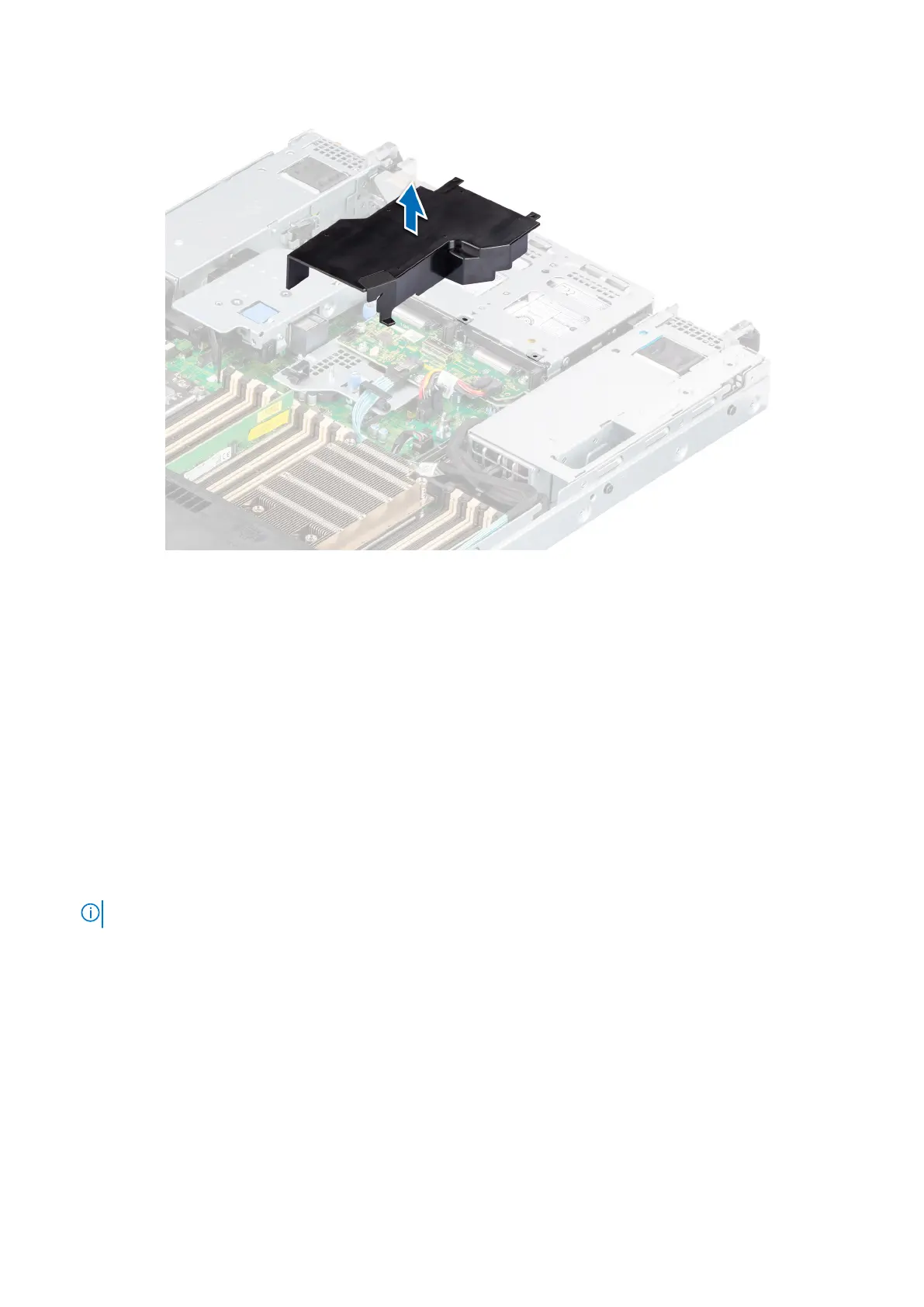

Figure 19. Removing the air shroud from the rear drive module
Next steps
1. Replace the air shroud.
Installing the air shroud
Prerequisites
1. Follow the safety guidelines listed in the Safety instructions.
2. Follow the procedure listed in Before working inside your system.
Steps
1. Holding the edges of the air shroud, align the slot on the air shroud with the standoff on the system.
2. Lower the air shroud into the system until it is firmly seated.
NOTE: Air shroud is not supported for T-type heat sink and liquid cooling configurations.
Installing and removing system components 33
