Dell EMC XC Core XC650 - Installing the Drive Backplane Cover

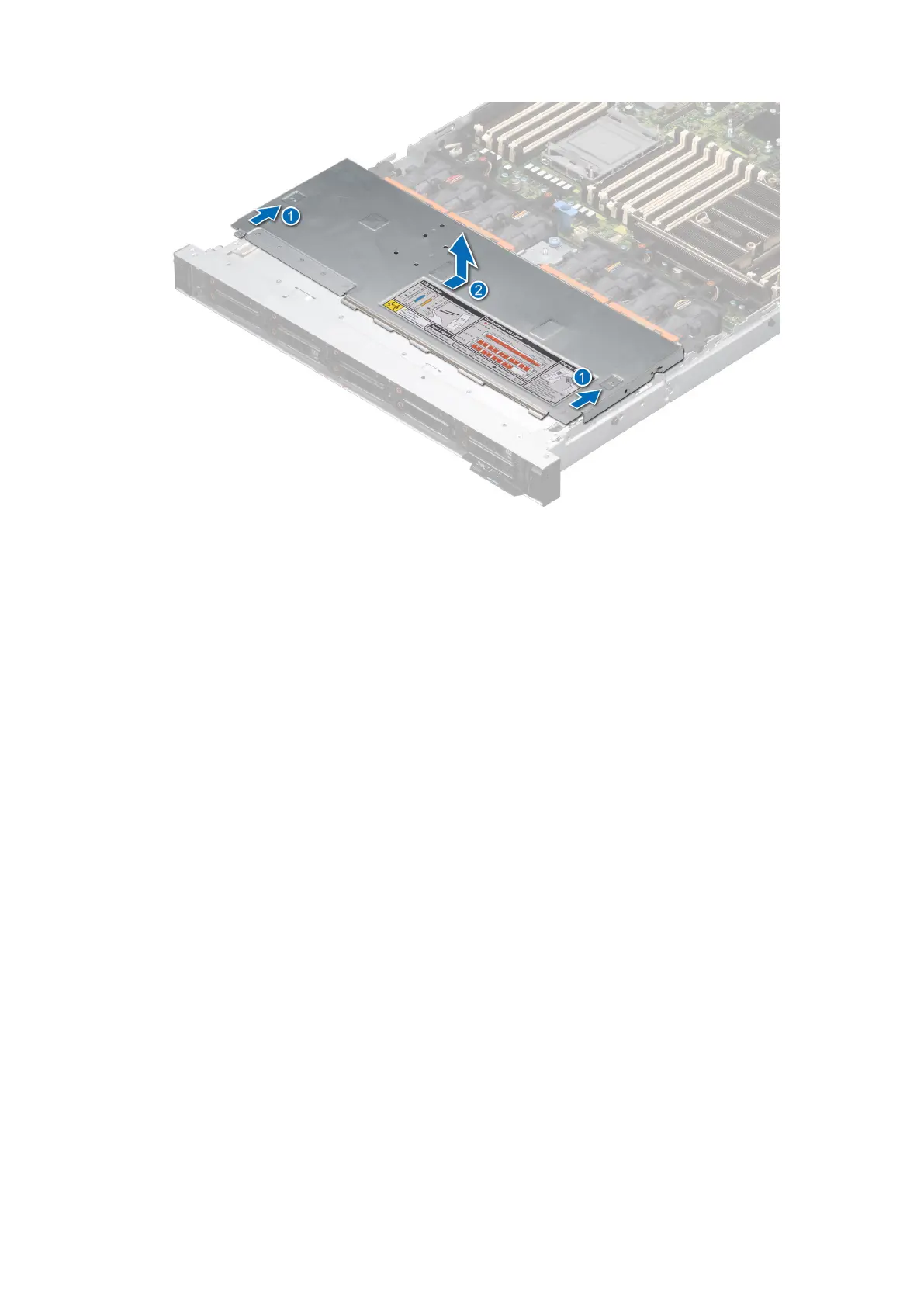

Figure 16. Removing the drive backplane cover
Next steps
1. Replace the drive backplane cover.
Installing the drive backplane cover
Prerequisites
1. Follow the safety guidelines listed in the Safety instructions.
Steps
1. Align the drive backplane cover with the guide slots on the system.
2. Slide the drive backplane cover to the front of the system until the drive backplane cover fits into place.
