Dell EMC XC Core XC650 User Manual

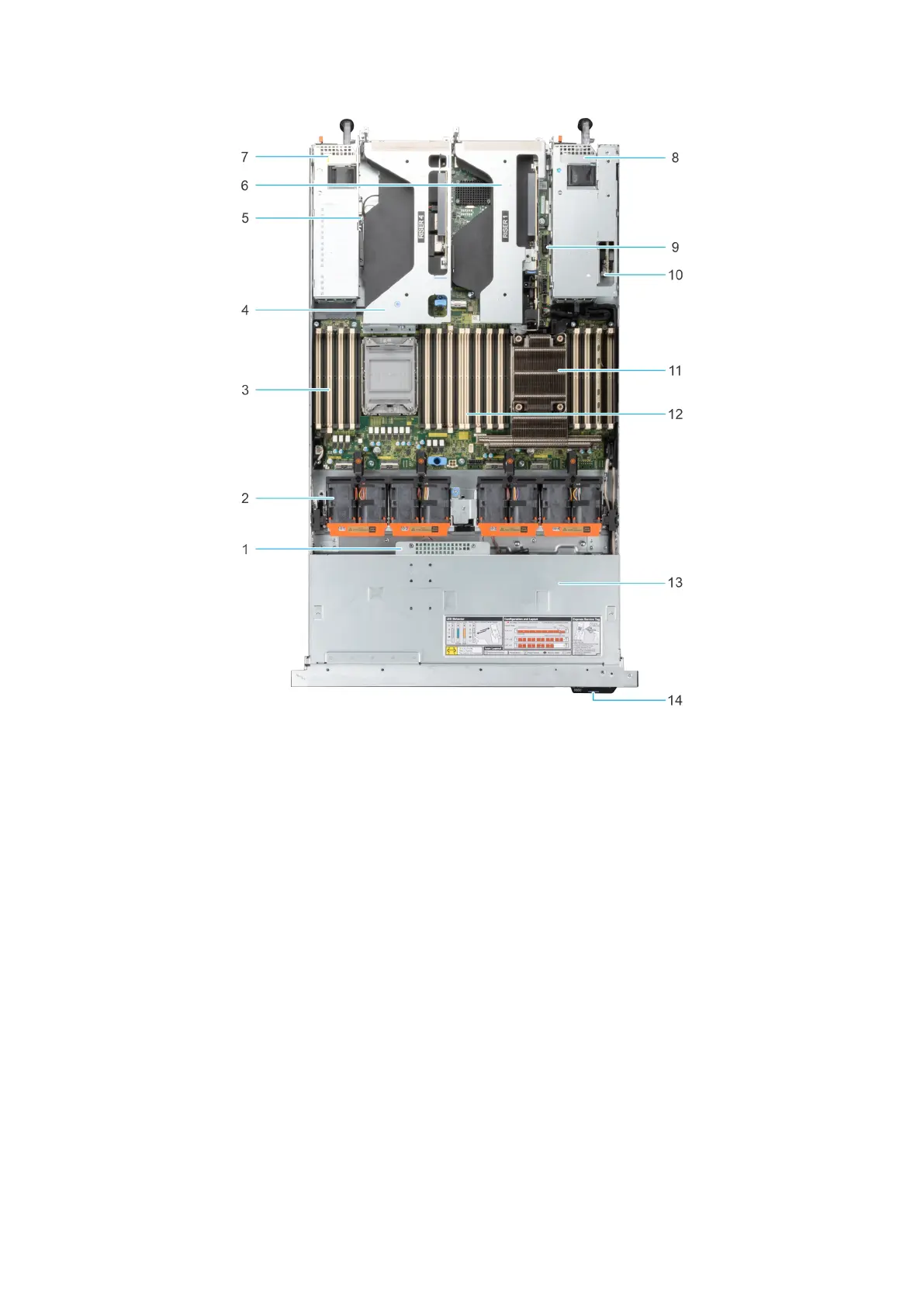

Figure 7. Inside the system with rear mounting fPERC
1.
fPERC 2. Cooling fan
3. Memory DIMM socket for processor 2 (B2) 4. Riser 4
5. Intrusion switch 6. Riser 1
7. Power supply unit (PSU 1) 8. Power supply unit (PSU 2)
9. IDSDM/Internal USB card port 10. BOSS S2 module
11. Heat sink for processor 1 12. Memory DIMM socket for processor 1 (A6)
13. Backplane cover 14. Service Tag
Locating the Express Service Code and Service Tag
The unique Express Service Code and Service Tag are used to identify the system.
The information tag is located on the front of the system that includes system information such as Service Tag, Express Service
Code, Manufacture date, NIC, MAC address, QRL label, and so on.
