Cooling fan module
Removing a cooling fan module
Prerequisites
1. Follow the safety guidelines listed in the Safety instructions.
2. Follow the procedure listed in Before working inside your system.
3. If installed, remove the air shroud.
Steps
Holding the orange and black edges on the fan module, lift the cooling fan module to disconnect from the connector on the
system board.
NOTE: The procedure to remove standard (STD), high performance silver grade (HPR SLVR), or high performance gold
grade (HPR Gold) dual cooling fan modules are same.

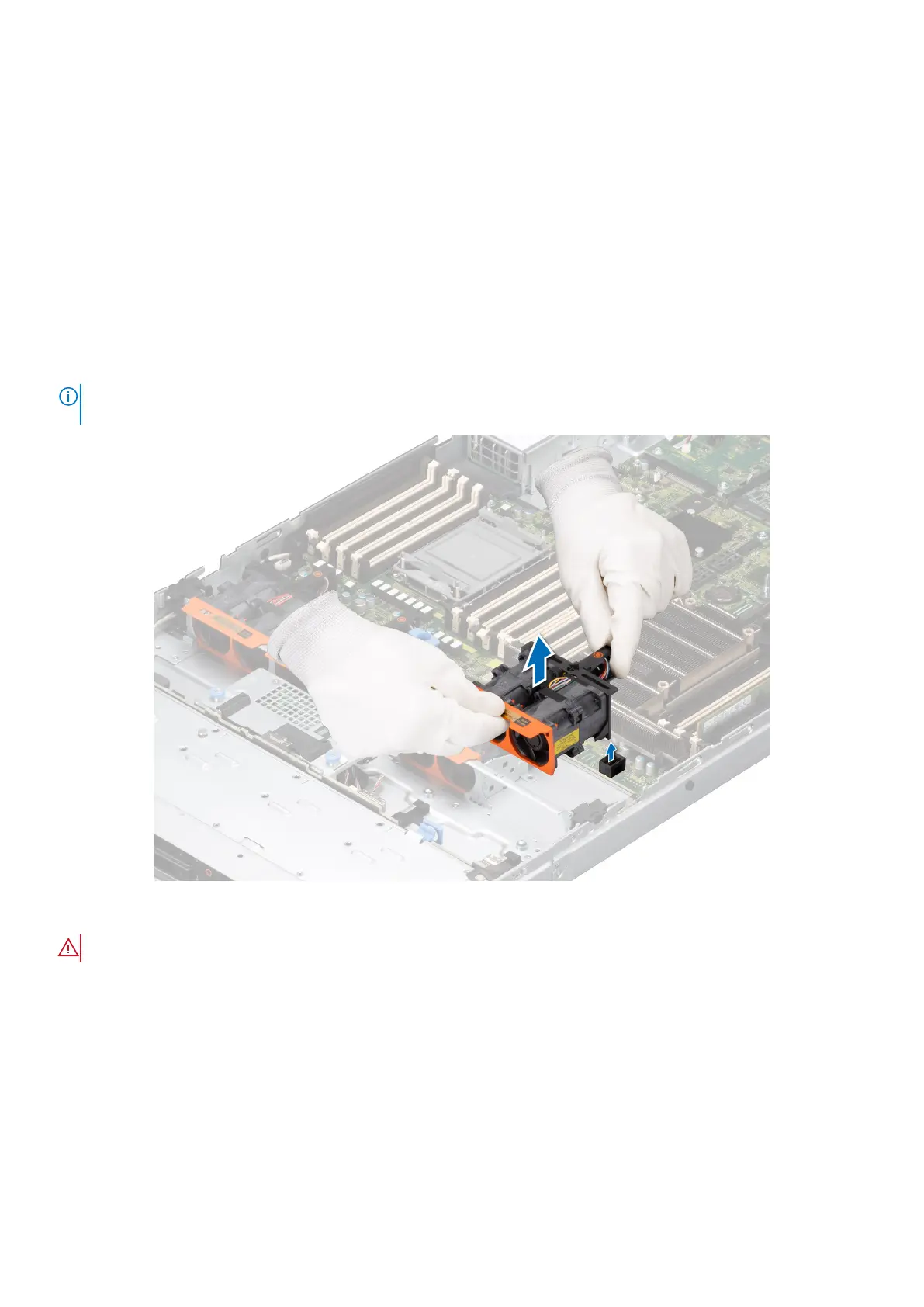

Figure 22. Removing a cooling fan module
WARNING: Ensure not to tilt or rotate the cooling fan module while removing from the system.
Next steps
1. Replace a cooling fan module.
Installing a cooling fan module
Prerequisites
1. Follow the safety guidelines listed in the Safety instructions.
2. Follow the procedure listed in Before working inside your system.
Installing and removing system components
35
