Dell EMC XC Core XC650 User Manual

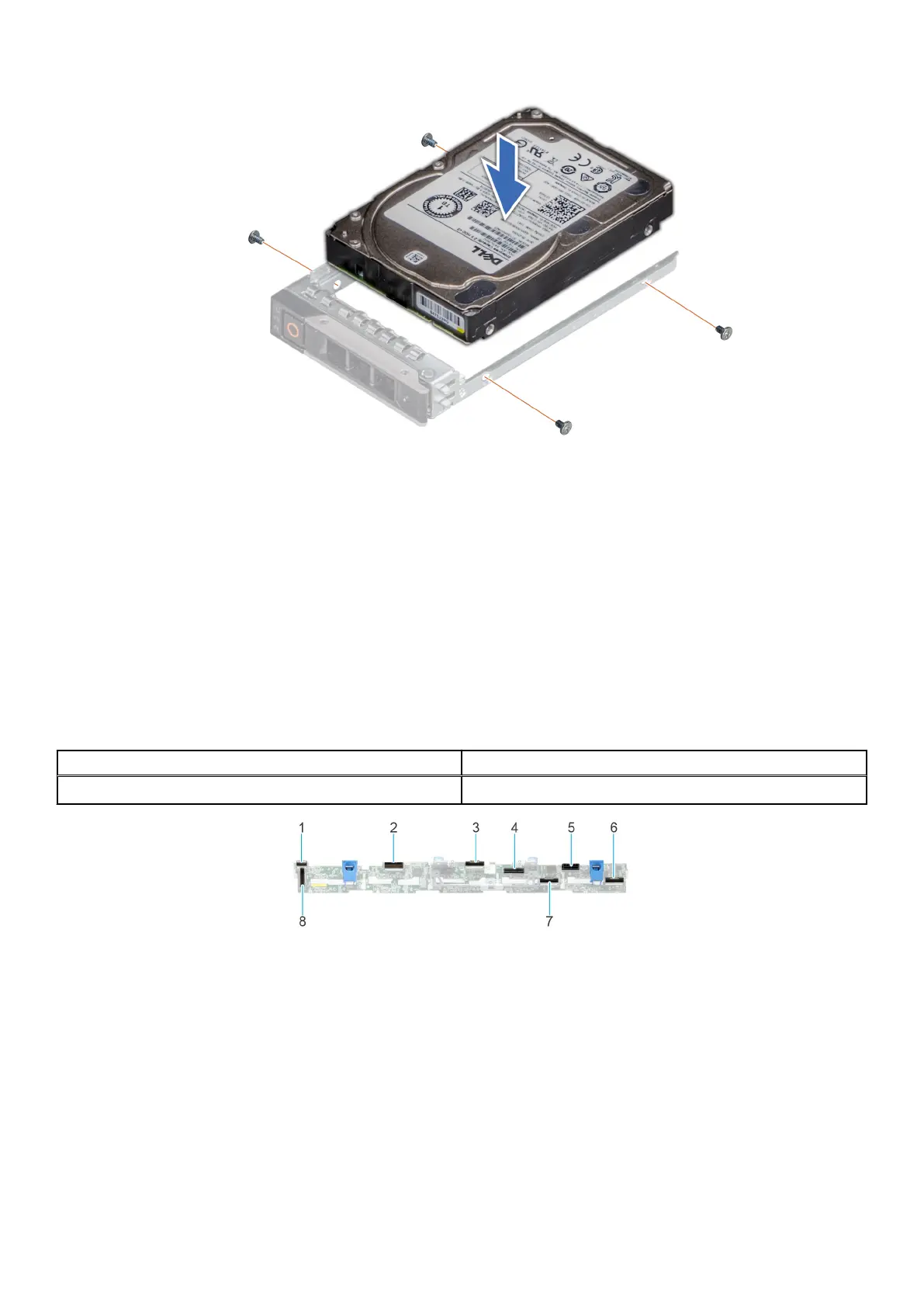

Figure 29. Installing a drive into the drive carrier
Next steps
Install the drive carrier.
Drive backplane
Drive backplane connectors
Depending on your system configuration, the drive backplanes supported are listed here:
Table 11. Supported backplane options
System Supported hard drives options
XC Core XC650 2.5-inch (x10) SAS, SATA or NVMe backplane
Figure 30. 10 x 2.5-inch drive backplane
1.
DST_SA2 (backplane to front PERC) 2. DST_PB2 (PCIe/NVMe connector)
3. DST_PA2 (PCIe/NVMe connector) 4. DST_SA1 (PERC to backplane)
5. BP_PWR_1 (backplane power and signal cable to system
board)
6. DST_PA1 (PCIe/NVMe connector)
7. DST_PB1 (PCIe/NVMe connector) 8. DST_PA3 (PCIe/NVMe connector)
Installing and removing system components 41
