Air shroud
Removing the air shroud
Prerequisites
CAUTION: Never operate your system with the air shroud removed. The system may get overheated quickly,
resulting in shutdown of the system and loss of data.
1. Follow the safety guidelines listed in the Safety instructions.
2. Follow the procedure listed in Before working inside your system.
Steps
1. Hold the edges of the air shroud, and then lift the air shroud out of the system.
NOTE: Air shroud is not supported for T-type heat sink and liquid cooling configurations.

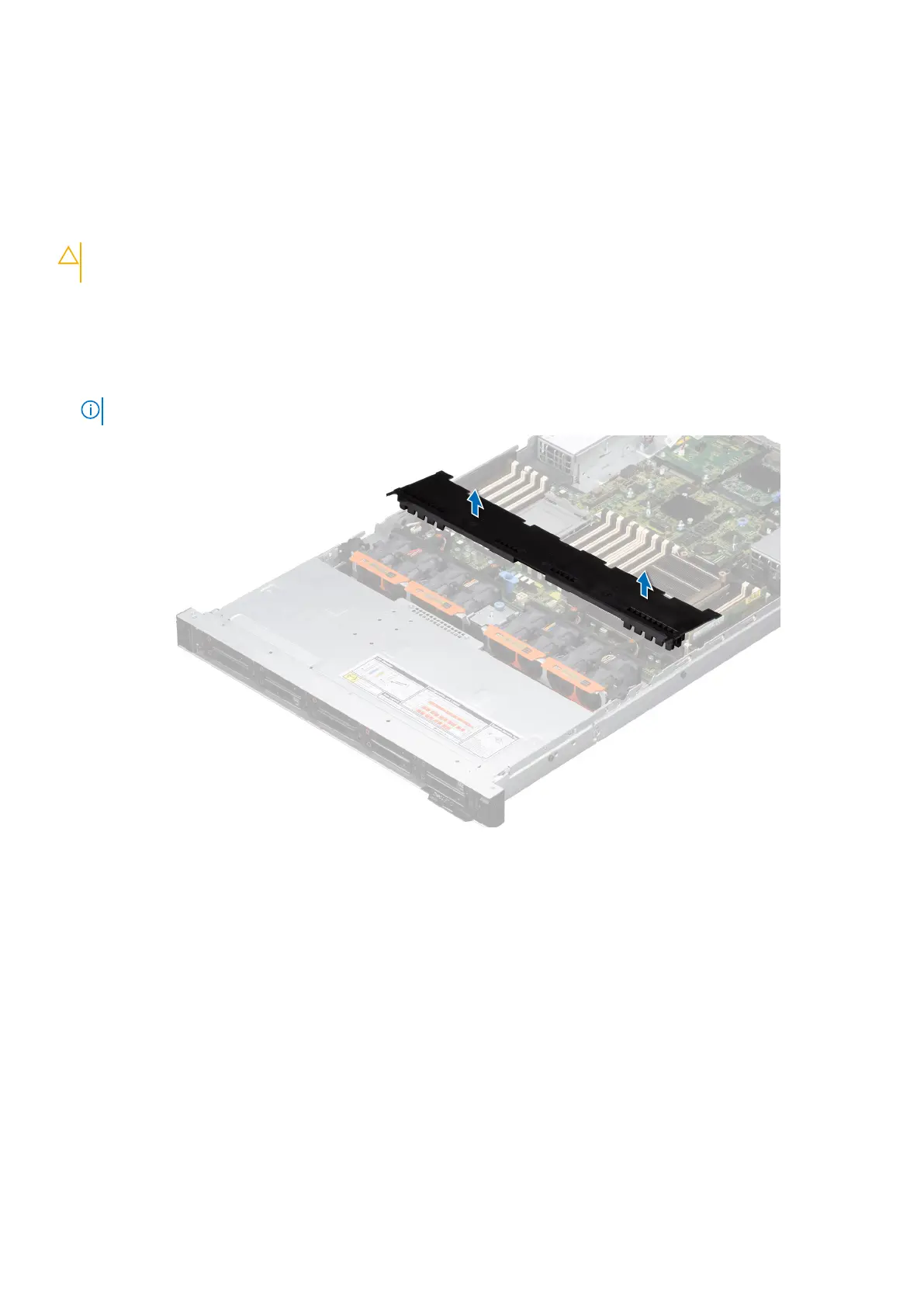

Figure 18. Removing the air shroud
2. For the air shroud on the rear drive module, hold the edges of the air shroud, and lift the air shroud out of the rear drive
module.
32
Installing and removing system components
