Dell Technologies XC650 system overview
The XC650 is a 1U server that supports:
Up to two 3
rd
Generation Intel Xeon Scalable processors, with up to 40 cores per processor
32 DIMM slots
Two redundant AC power supply units
10 x 2.5-inch drives (with two or four universal slots to support optional NVMe drives) or 10x 2.5-inch NVMe drives only.
NOTE: For more information about how to hot swap NVMe PCIe SSD U.2 device, see the Dell Express Flash NVMe PCIe
SSD User's Guide at https://www.dell.com/support> Browse all Products > Data Center Infrastructure > Storage
Adapters & Controllers > Dell PowerEdge Express Flash NVMe PCIe SSD > Documentation > Manuals and
Documents.
NOTE: All instances of SAS, SATA, NVMe drives are referred to as drives in this document, unless specified otherwise.
CAUTION: Do not install GPUs, network cards, or other PCIe devices on your system that are not validated
and tested by Dell. Damage caused by unauthorized and invalidated hardware installation will null and void the
system warranty.
Topics:
Front view of the system
Right Control Panel View
Left control panel view
Rear view of the system
Inside the system
Locating the Express Service Code and Service Tag
System information label
Rail sizing and rack compatibility matrix
Front view of the system

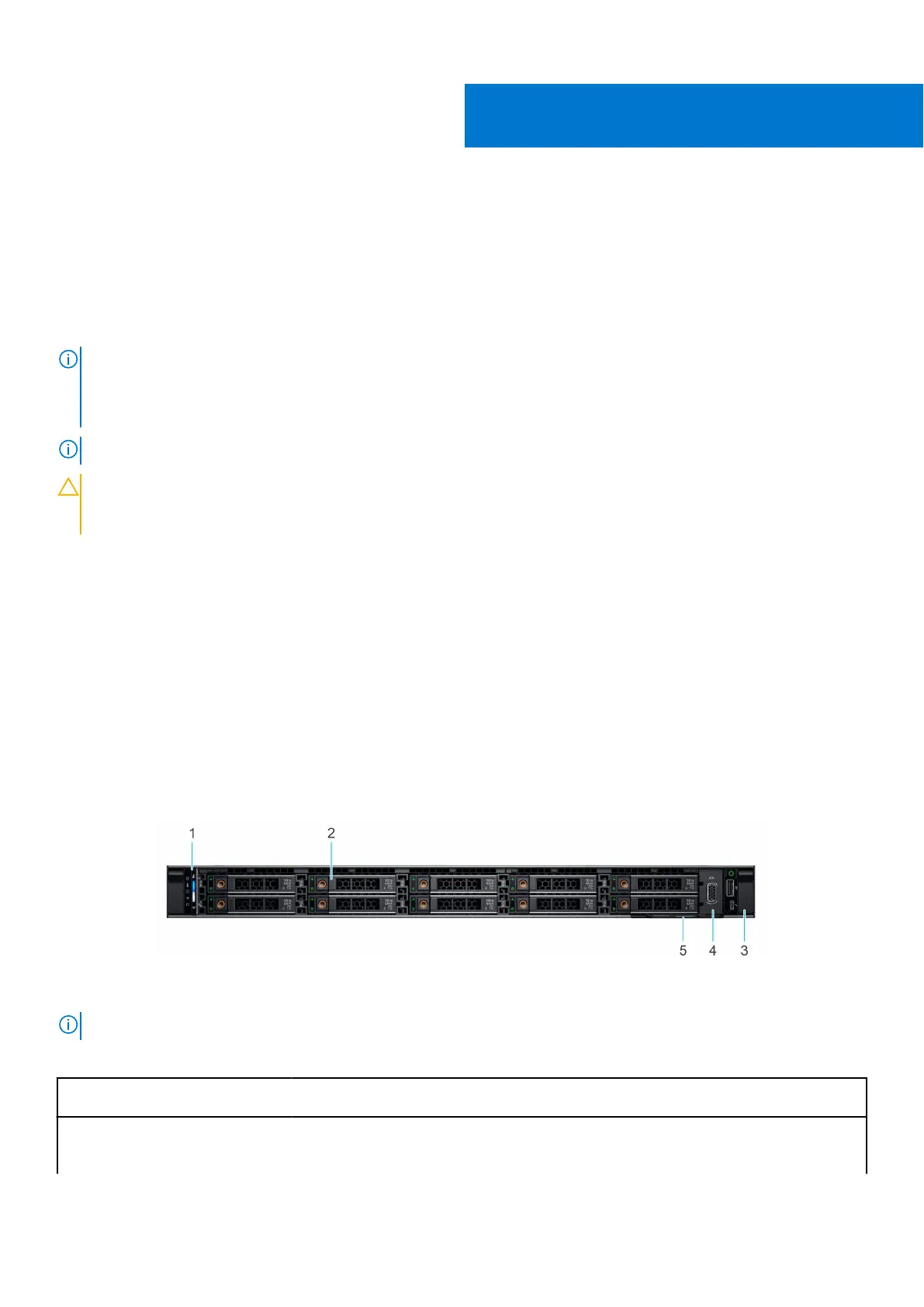

Figure 1. Front view of 10 x 2.5-inch SAS/SATA/NVMe drive system
NOTE: For 8 x 2.5-inch all NVMe drive system, you must install drive blanks on drive bays 8 and 9 in the same chassis.
Table 1. Features available on the front of the system
Item Ports, panels, and
slots
Icon Description
1 Left control panel N/A
Contains the system health, system ID, status LED, and the
iDRAC Quick Sync 2 (wireless) indicator.
2
8 Dell Technologies XC650 system overview
