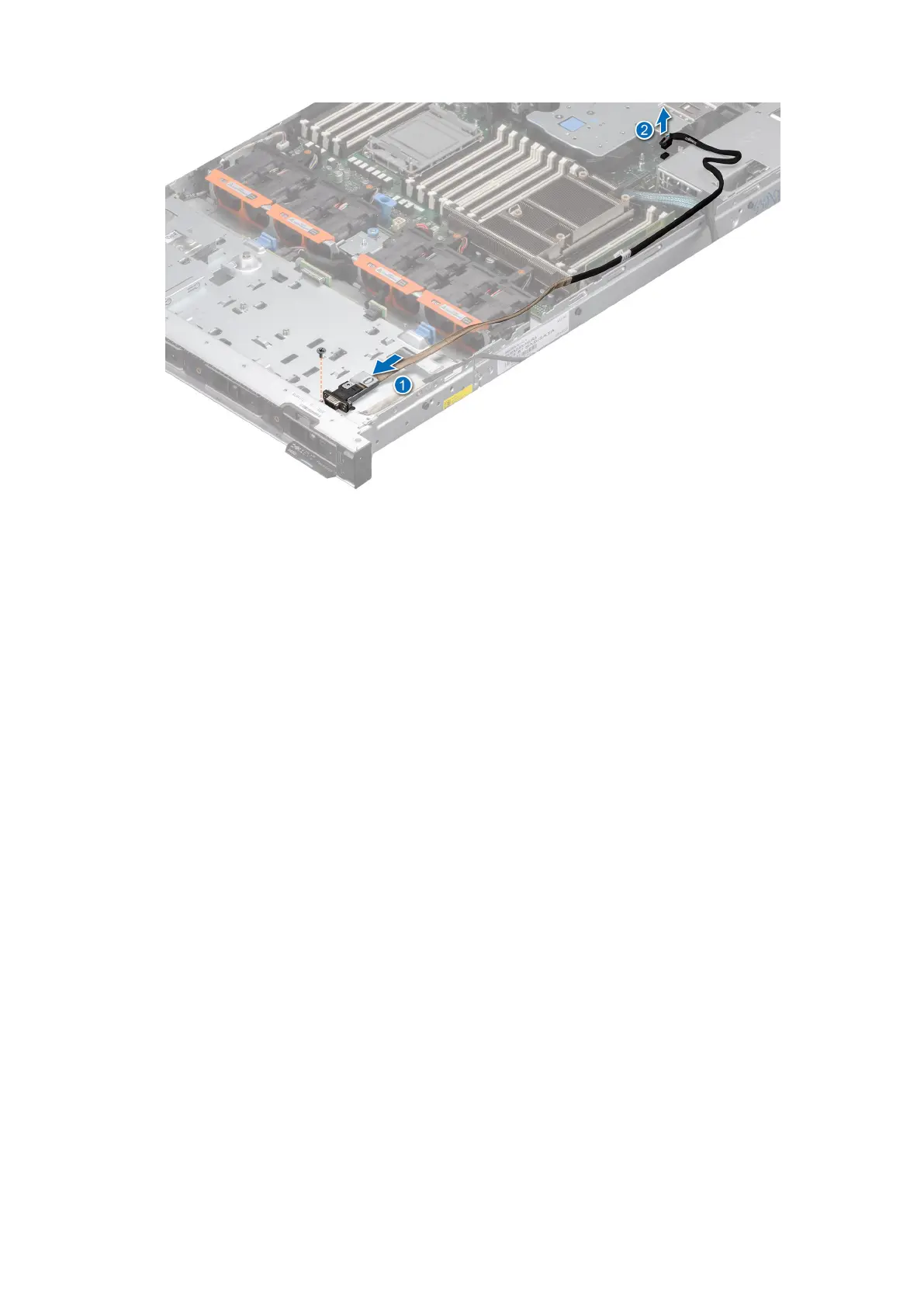

Figure 88. Installing the VGA module
Next steps
1. Route the VGA cable, close the cable latch, and connect the VGA cable to the connector on the system board.
2. Route and connect the right control panel cable.
3. If removed, install the air shroud.
4. Install the backplane cover.
5. If installed, Install the front bezel.
6. Follow the procedure listed in the After working inside your system.
Removing the rear VGA port
Prerequisites
1. Follow the safety guidelines listed in the Safety instructions.
2. Follow the procedure listed in Before working inside your system.
3. Remove expansion card riser 3.
Steps
1. Disconnect the VGA port cable from the video connector on the rear I/O board and open the latch on the expansion card
riser.
2. Slide the VGA port out of the expansion card riser.
Installing and removing system components
99
