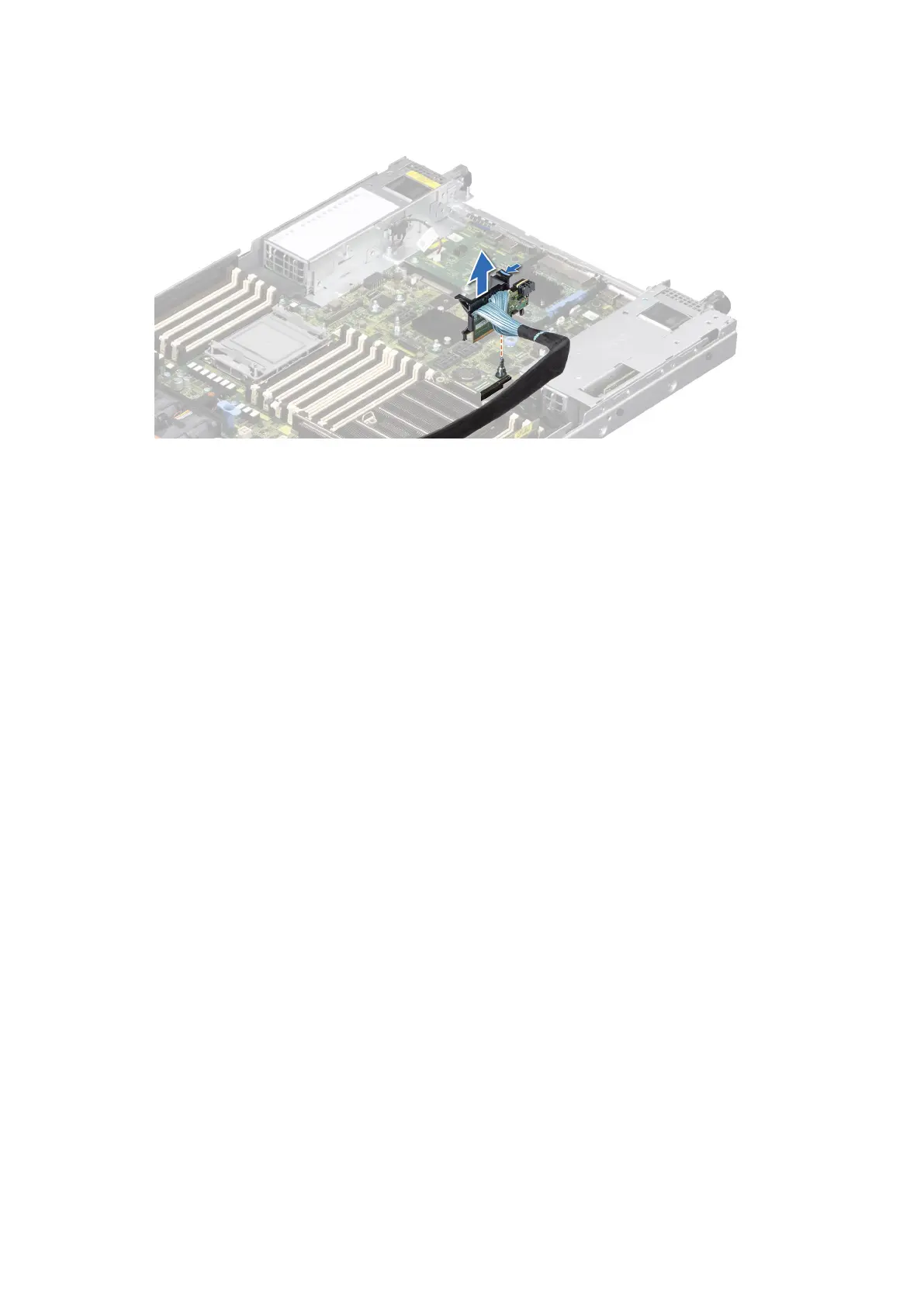

Figure 69. Removing the R1 paddle card
Next steps
1. Replace the paddle cards.
Installing R1 paddle card
Prerequisites
1. Follow the safety guidelines listed in the Safety instructions.
2. Follow the procedure listed in Before working inside your system.
3. If installed, remove the air shroud.
4. Remove the paddle card cable from side wall bracket.
5. Disconnect the paddle card cables from the drive backplane.
Steps
1. Holding the edges, align the hole on the paddle cards with the guides on the system board.
2. Lower the paddle cards into place and press until the paddle card connector is fully seated on the system board connector.
Installing and removing system components
83
