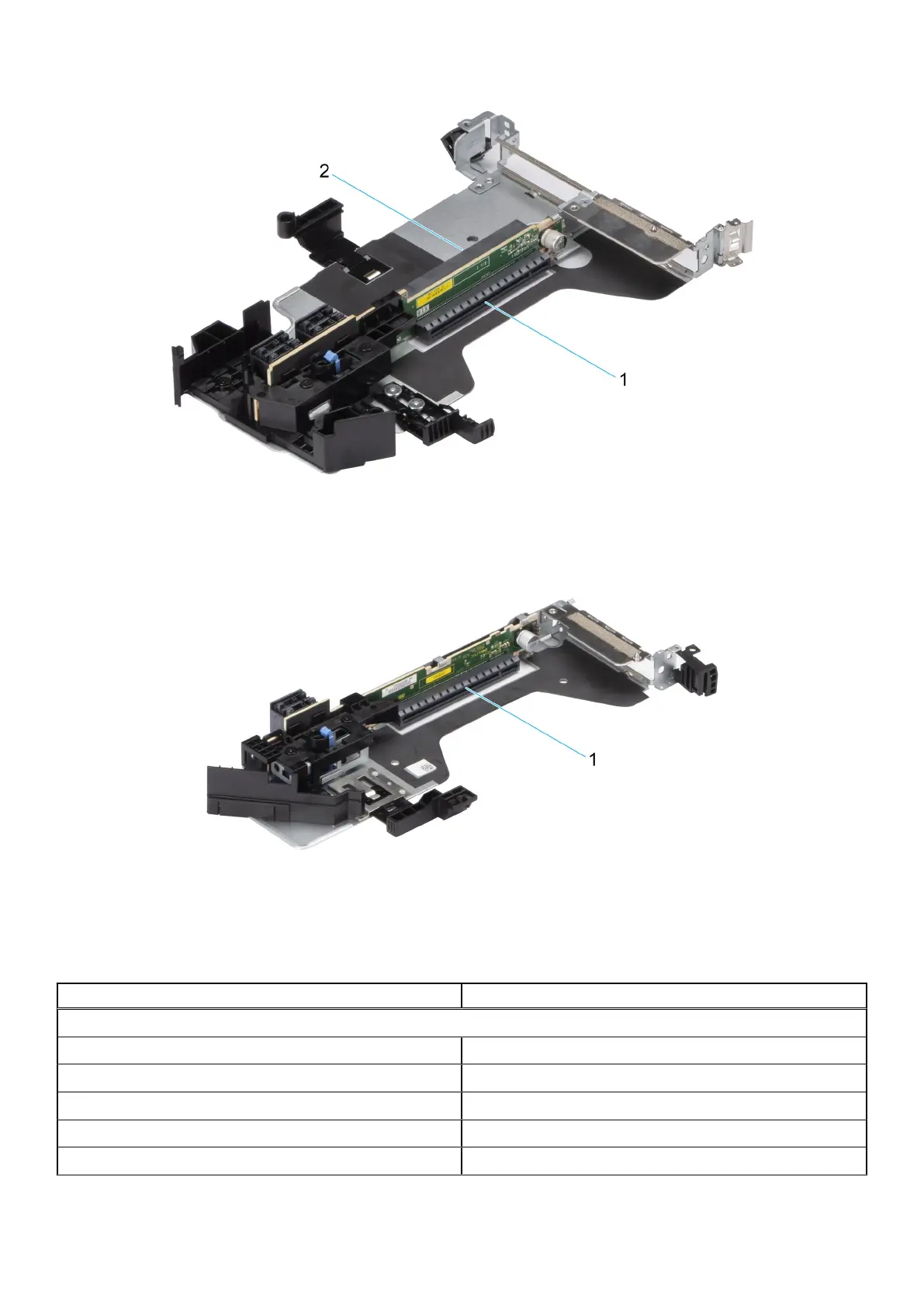

Figure 55. Riser 2 - Low profile
1. Slot 1
2. Slot 2
Figure 56. Riser 3 - Low profile
1. Slot 3
The XC650 supports the following riser configurations:
Table 26. Riser configuration 0-1: R2A + R3A
Card type Slot priority
Storage
Dell External PERC Adapter 1
Foxconn (fPERC) Integrated slot
Inventec (fPERC) Integrated slot
Dell BOSS S2 Module Integrated slot
Intel (PCIe SSD) 1
70 Installing and removing system components
