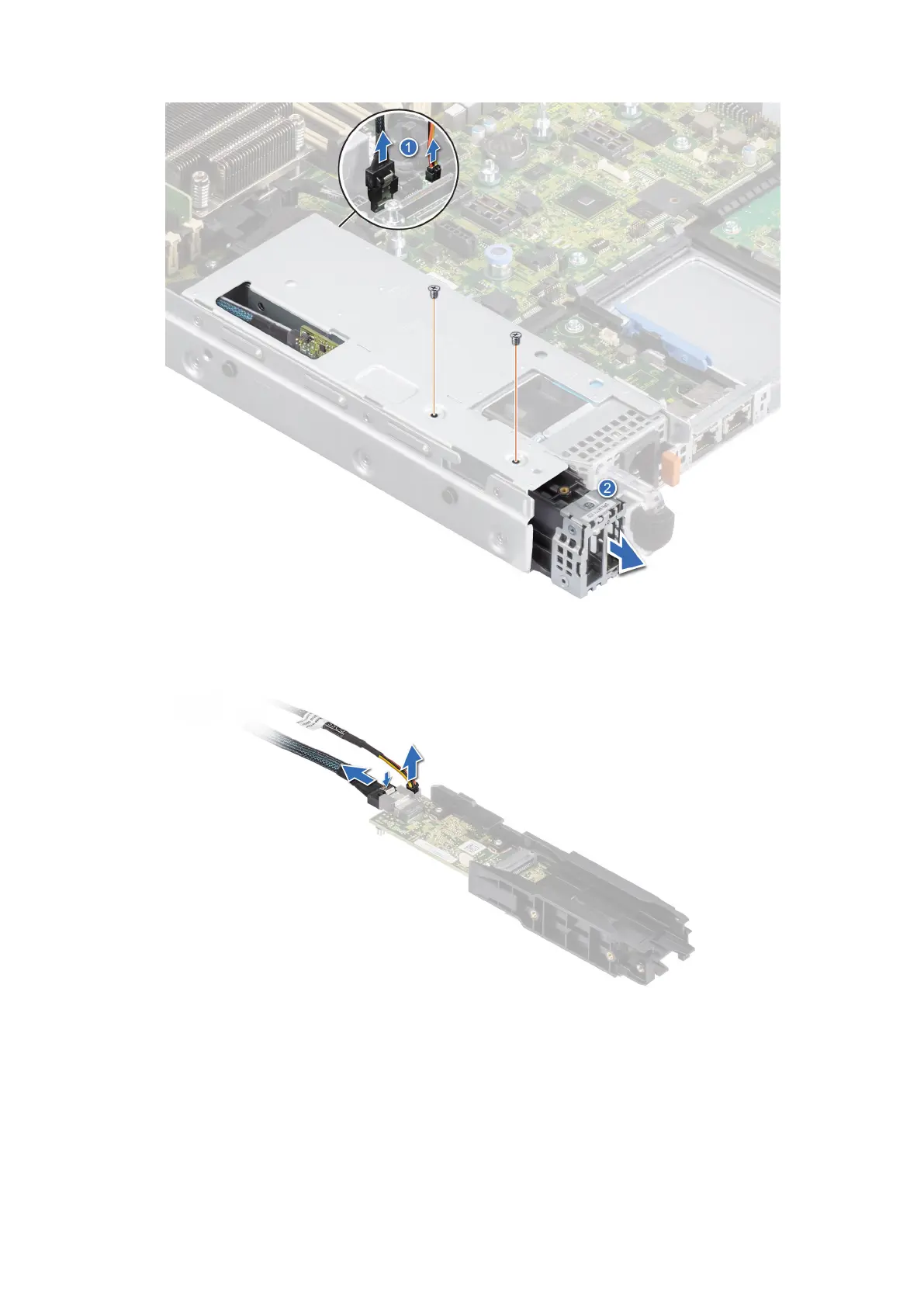

Figure 75. Removing the BOSS S2 module
7. Remove the BOSS power cable and BOSS signal cable from the BOSS S2 controller card module.
Figure 76. Removing the BOSS power cable and BOSS signal cable
8. Using the Phillips #1 screwdriver, remove the M3 x 0.5 x 4.5 mm screw that secures the BOSS cover on the BOSS S2
controller card module. Slide the BOSS cover out from the BOSS S2 controller card module.
88
Installing and removing system components
