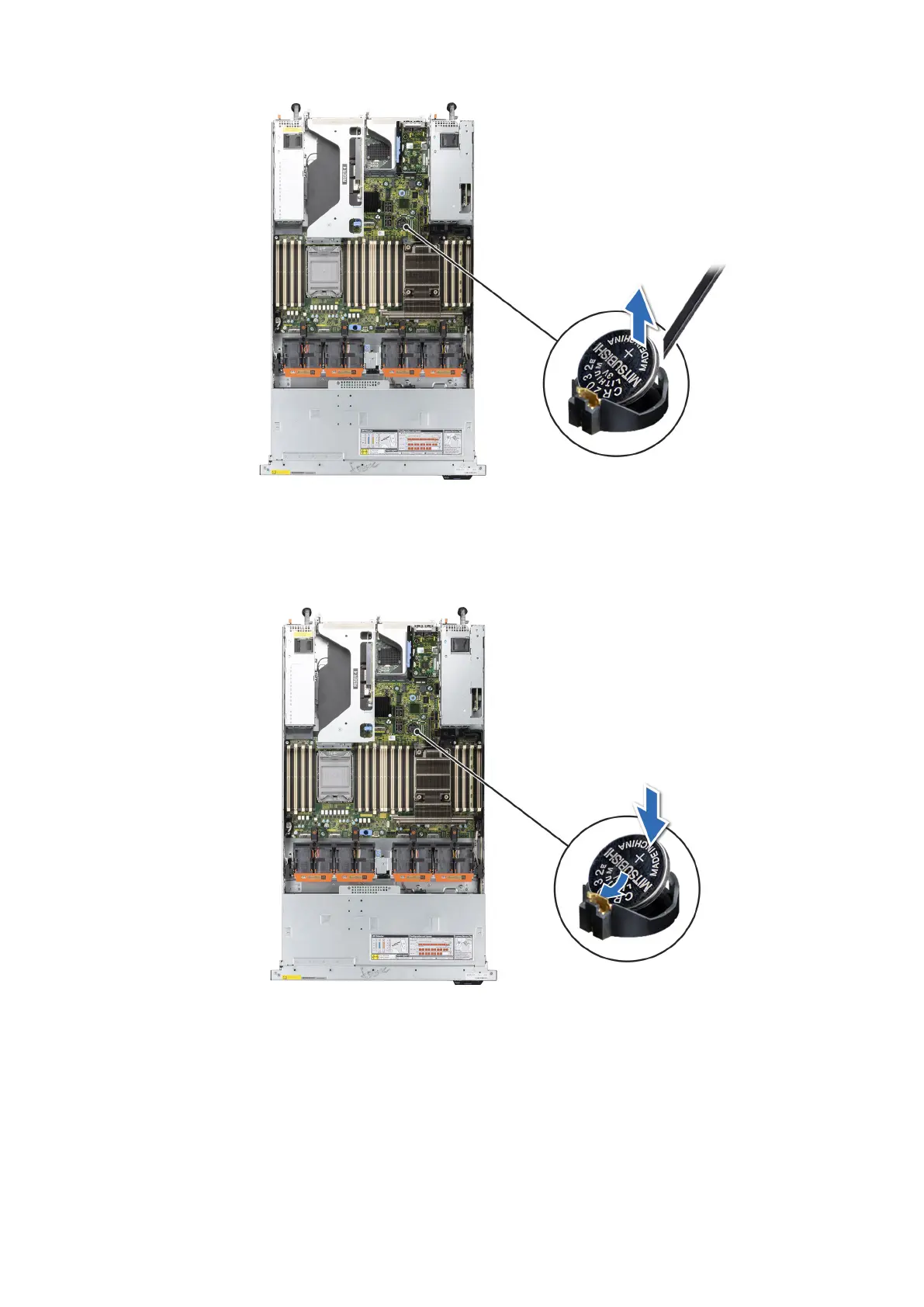

Figure 85. Removing the system battery
2. To install a new system battery:
a. Hold the battery with the positive side facing up and slide it under the securing tabs.
b. Press the battery into the connector until it snaps into place.
Figure 86. Installing the system battery
Next steps
1. Install the expansion card risers.
2. If applicable, connect the cables to one or more expansion cards.
3. Follow the procedure listed in After working inside your system.
4. Confirm that the battery is operating properly, by performing the following steps:
a. Enter the System Setup, while booting, by pressing F2.
Installing and removing system components
95
