Dell Latitude 5280 - Base Cover; Removing Base Cover; Installing Base Cover

3 Remove the SIM card from the SIM card tray.
4 Push the SIM card tray into the slot until it clicks into place.
Base cover
Removing base cover
1 Follow the procedure in Before working inside your computer.
2 To remove the base cover:

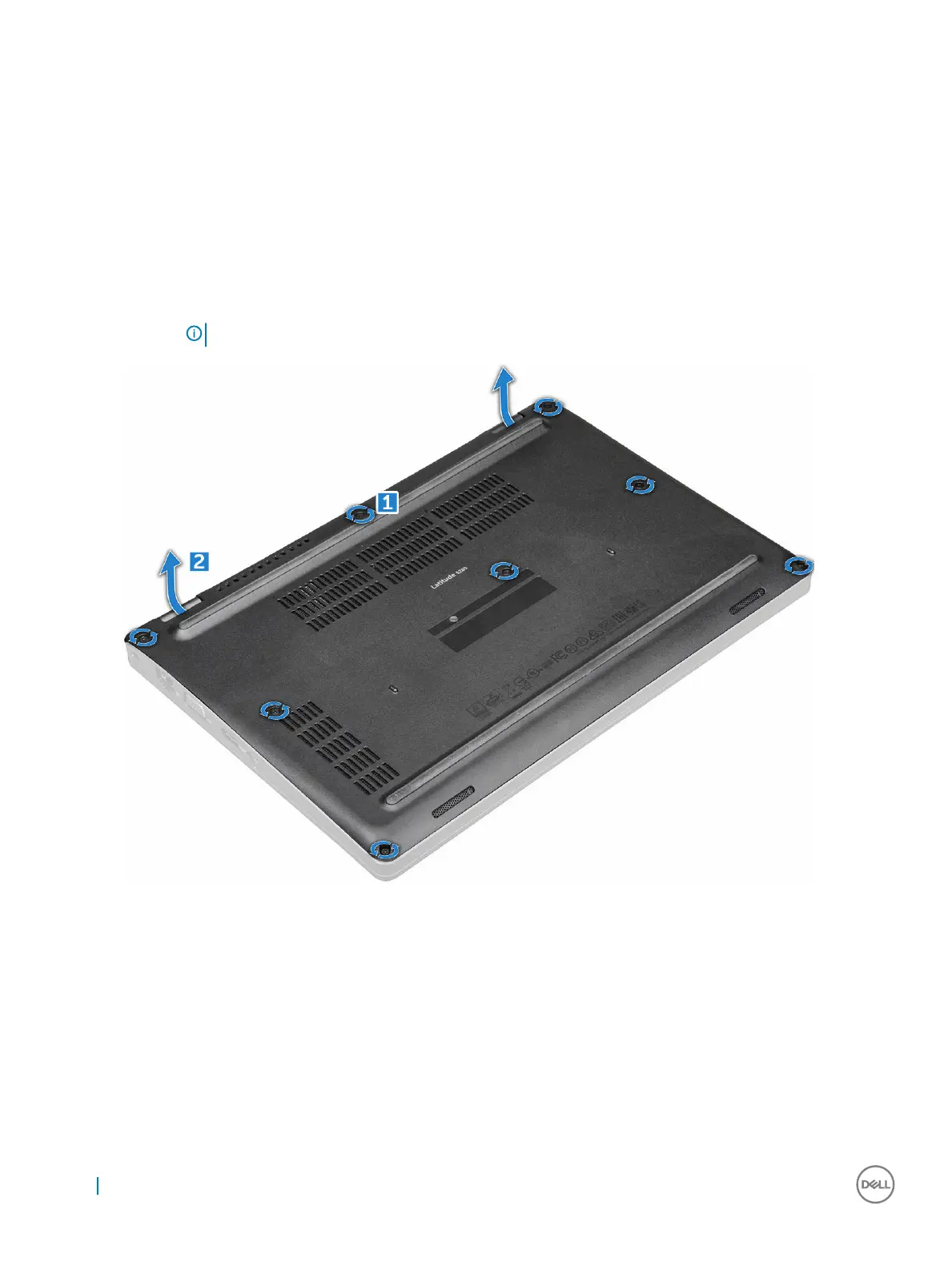

a Loosen the M2.5*6.3 captive screws that secure the base cover to the computer [1].
b Pry the base cover from the edge and lift the base cover away from the computer [2].
NOTE: You may need a plastic scribe to pry the base cover from the edges.
Installing base cover
1 Place the base cover to align with the screw holders on the computer.
2 Tighten the M2.5 captive screws to secure the base cover to the computer.
3 Follow the procedure in After working inside your computer.
14
Removing and installing components
