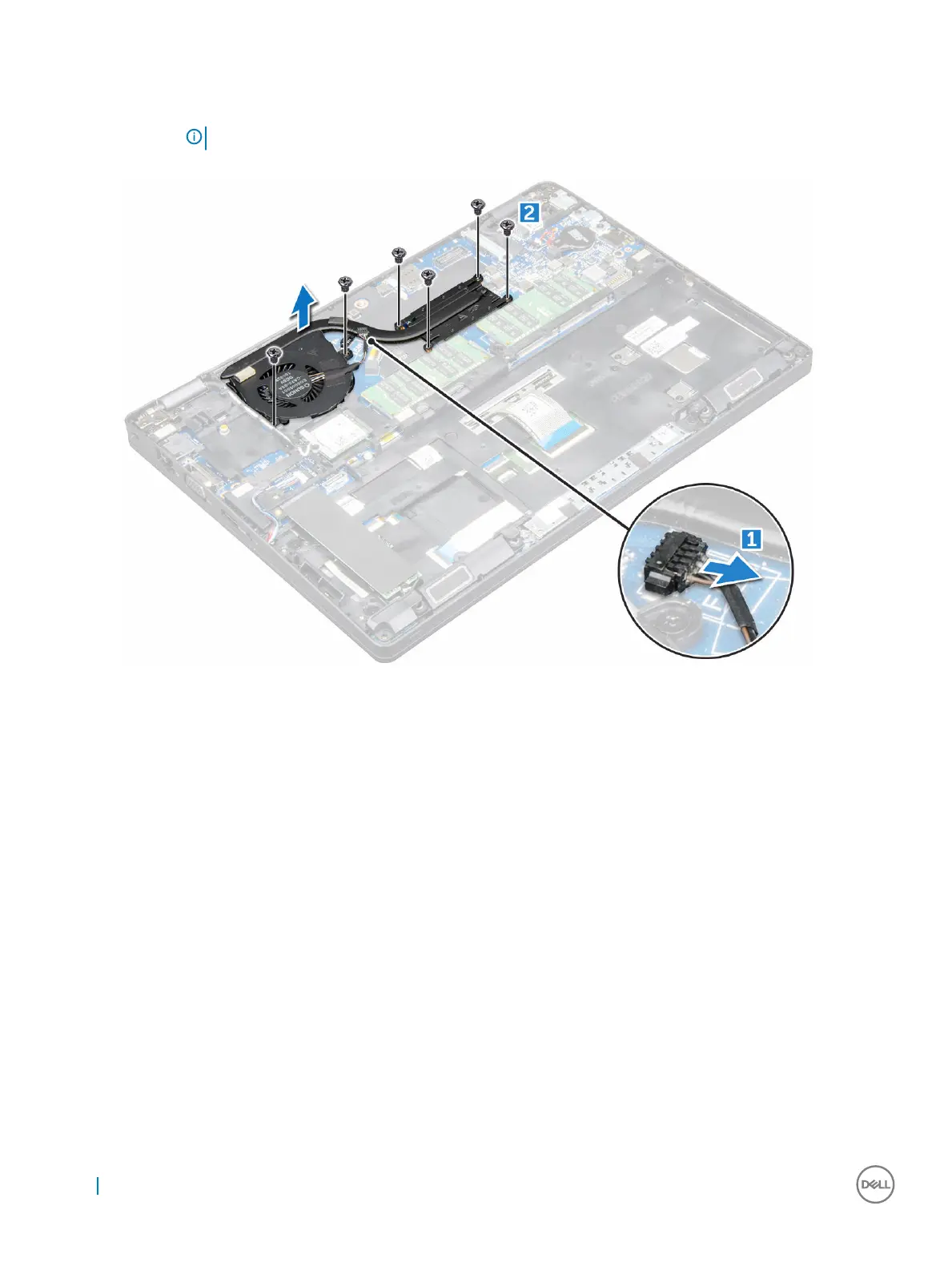

3 To remove the heat sink assembly:
a Disconnect the system fan cable from the connector on the system board [1]
b Remove the M2*3 screws that secure the heat sink assembly on the system board [2].
NOTE: The WLAN cables need to be moved aside to access one of the heat sink assembly screws.
c Lift the heat sink assembly away from the system board.
Installing heat sink assembly
1 Place the heat sink assembly on the system board.
2 Tighten the M2*3 screws to secure the heat sink assembly to the computer.
3 Connect the system fan cable to the connector on the system board.
4 Install the:
a battery
b base cover
5 Follow the procedure in After working inside your computer.
Power connector port
Removing power connector port
1 Follow the procedure in Before working inside your computer.
2 Remove the:
a base cover
b battery
3 To remove the power connector port:
24
Removing and installing components
