Display bezel
Removing display bezel
The following procedure is applicable only if your computer is a non-touch computer.
1 Follow the procedure in Before working inside your computer.
2 Remove the:
a base cover
b battery
c WLAN card
d display assembly

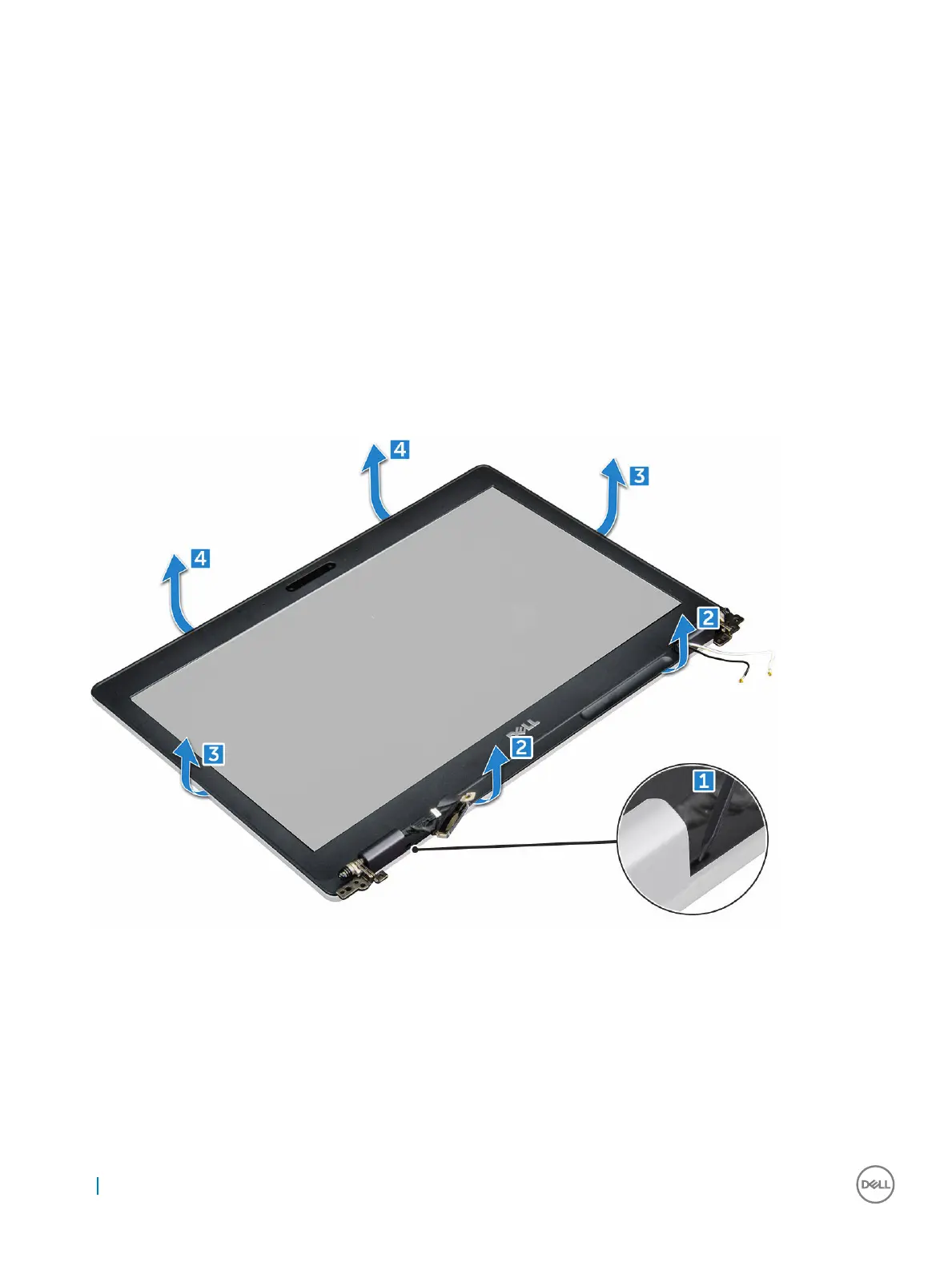

3 To remove the display bezel:
a Pry the display bezel at the base of the display [1].
b Lift the display bezel to release it [2].
c Pry the edges on the side of the display to release the display bezel [3, 4].
Installing display bezel
1 Place the display bezel on the display assembly.
2 Starting from the top corner, press on the display bezel and work around the entire bezel until it clicks on to the display assembly.
3 Install the:
a display assembly
b WLAN card
c battery
40
Removing and installing components
