Installing display panel

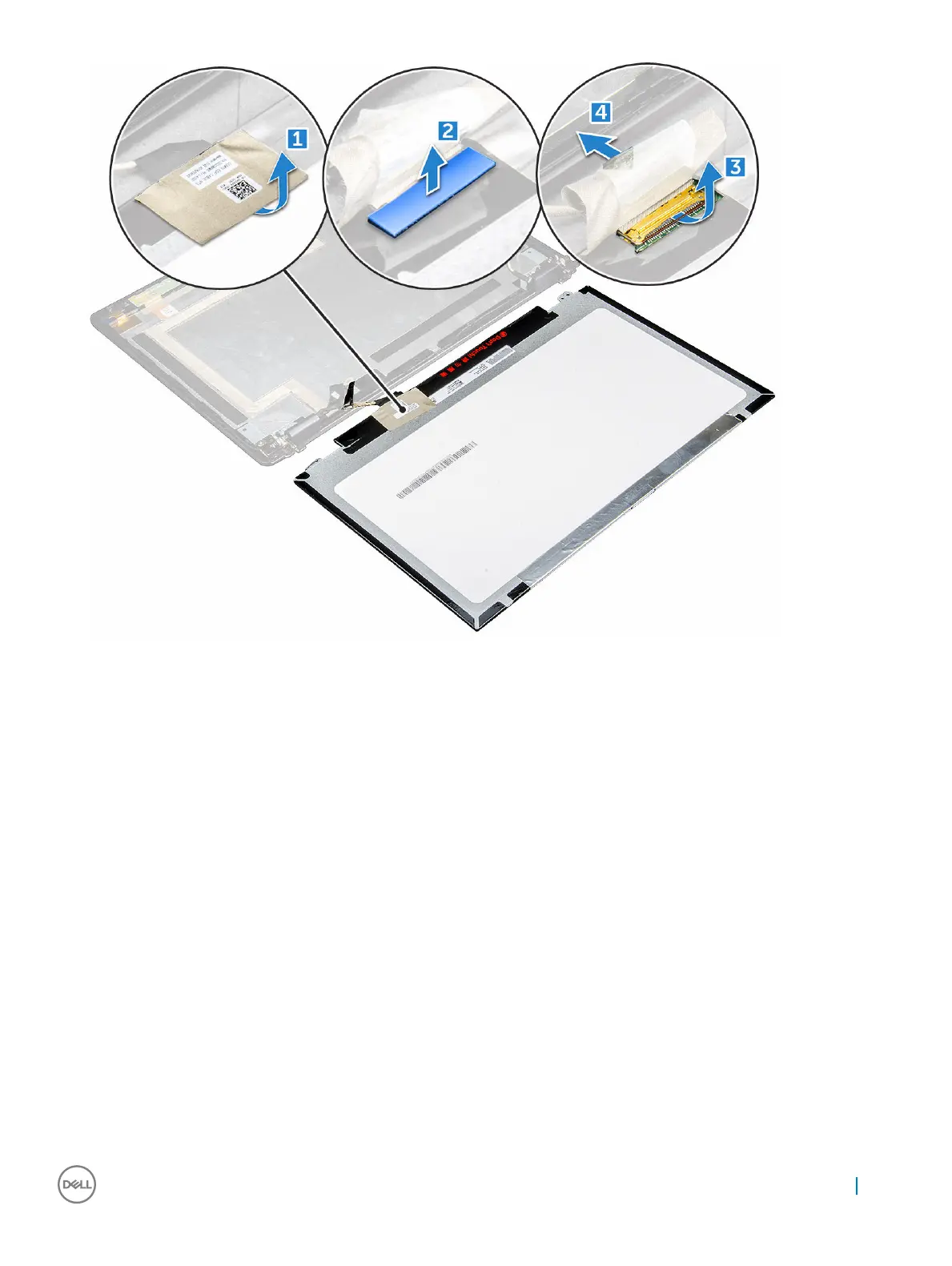

1 Connect the eDP cable to the connector and affix the blue tape.
2 Affix the adhesive tape to secure the eDP cable.
3 Replace the display panel to align with the screw holders on the display assembly.
4 Tighten the M2*2 screws to secure the display panel to the display assembly.
5 Install the:
a display bezel
b display assembly
c WLAN card
d battery
e base cover
6 Follow the procedure in After working inside your computer.
Removing and installing components
45
