eDP cable
Removing eDP cable
The following procedure is applicable only if your computer is a non-touch computer.
1 Follow the procedure in Before working inside your computer.
2 Remove the:
a base cover
b battery
c WLAN card
d display assembly
e display bezel
f display panel

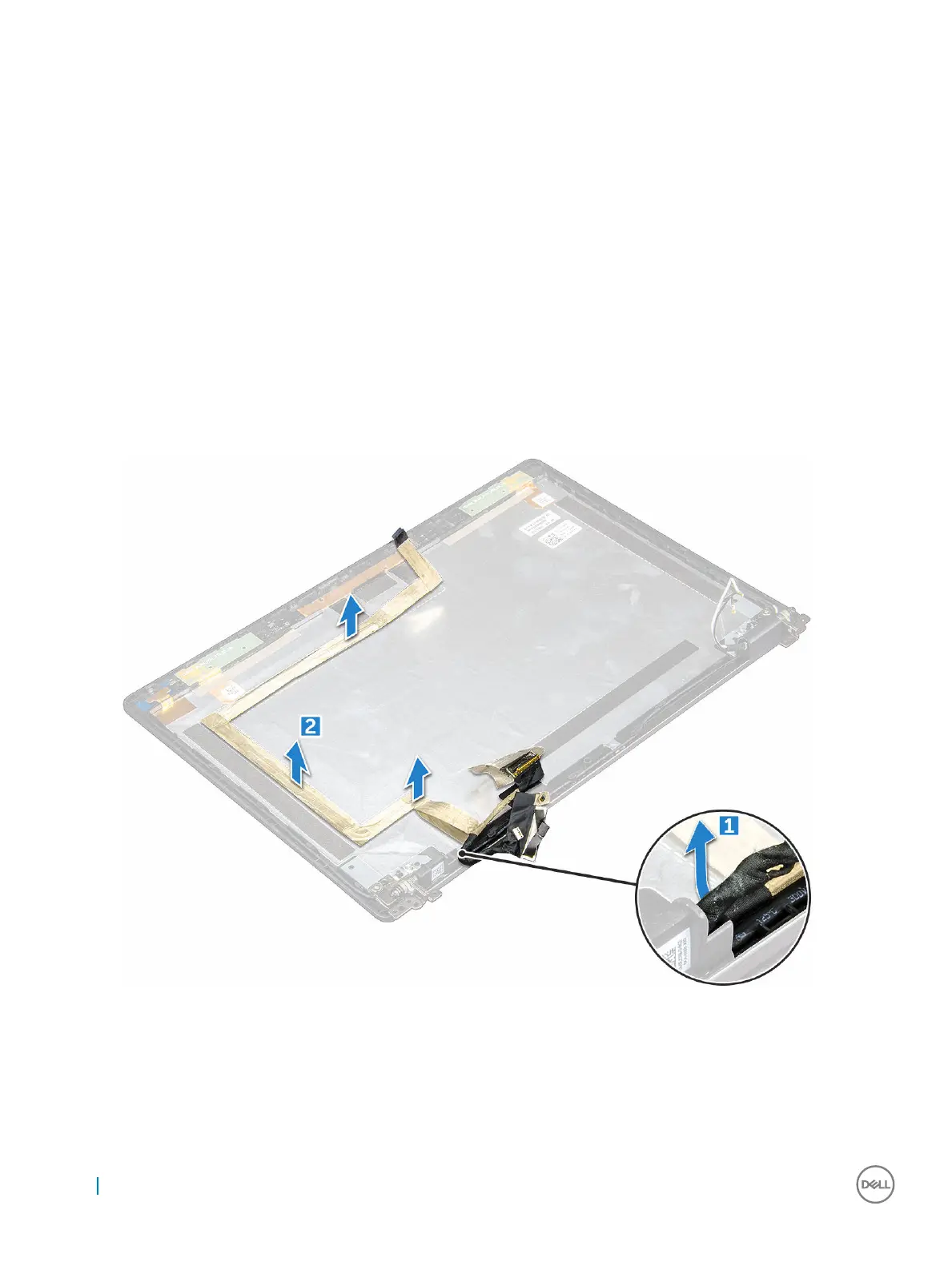

3 To remove the eDP cable:
a Slide the display cable [1].
b Peel the eDP cable from the adhesive [2].
Installing eDP cable
1 Affix the eDP cable on the display panel.
2 Realign the display cable to secure the eDP cable.
3 Install the:
