Installing display assembly

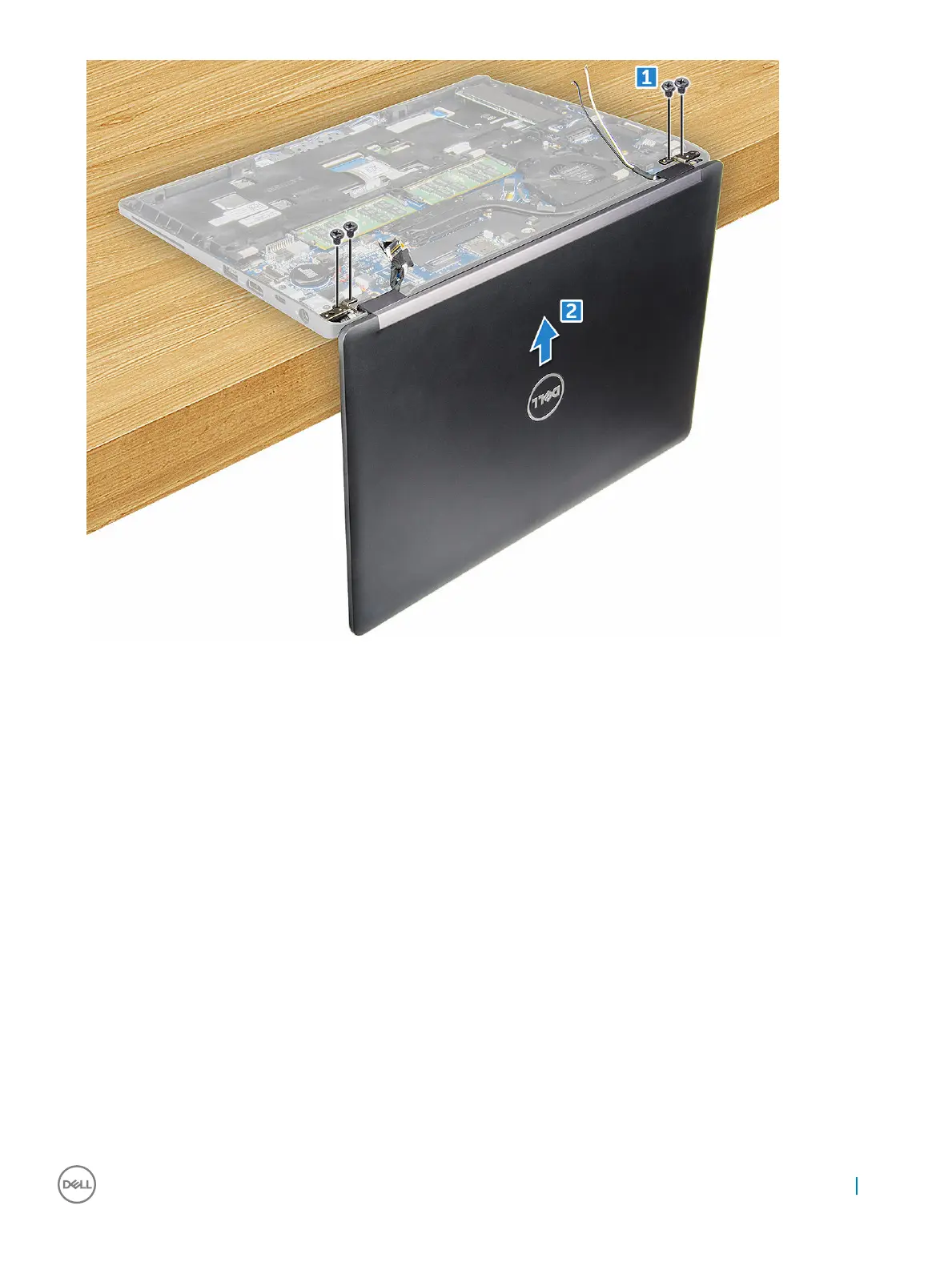

1 Place the chassis on the edge of a plane surface.
2 Align the display assembly to align with the screw holders on the computer.
3 Tighten the M2*5 screws to secure the display assembly to the computer.
4 Lift the computer and close the display.
5 Connect the display cable and IR camera cable to the connectors on the system board.
6 Place the metal bracket to secure the display cable.
7 Tighten the M2*5 screws to secure the display cable.
8 Route the WLAN cables through the routing channels.
9 Install the:
a WLAN card
b battery
c base cover
10 Follow the procedure in After working inside your computer.
