Display hinge cover
Removing display hinge cover
The following procedure is applicable only if your computer is a non-touch computer.
1 Follow the procedure in Before working inside your computer.
2 Remove the:
a base cover
b battery
c WLAN card
d display assembly
e display bezel

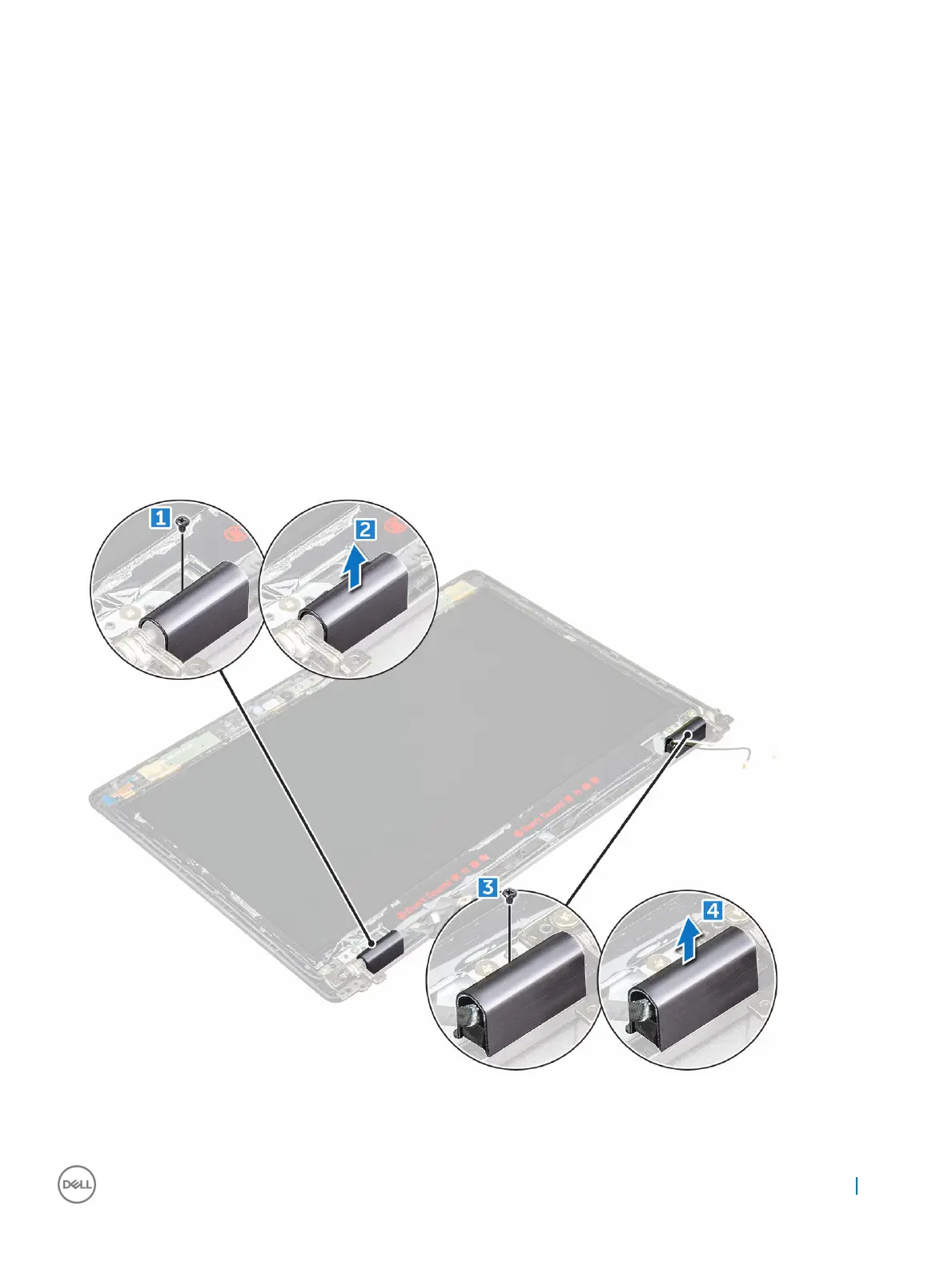

3 To remove the display hinge cover:
a Remove the M2.5*3 screw that secures the display hinge cover to the display assembly [1].
b Lift the display hinge cover away from the display hinge [2].
c Repeat step a and step b to remove the other display hinge cover[3] [4].
