Dell Latitude 5280 - Speaker; Removing Speaker

Speaker
Removing speaker
1 Follow the procedure in Before working inside your computer.
2 Remove the:
a base cover
b battery
c WLAN card
d SSD card
e chassis frame

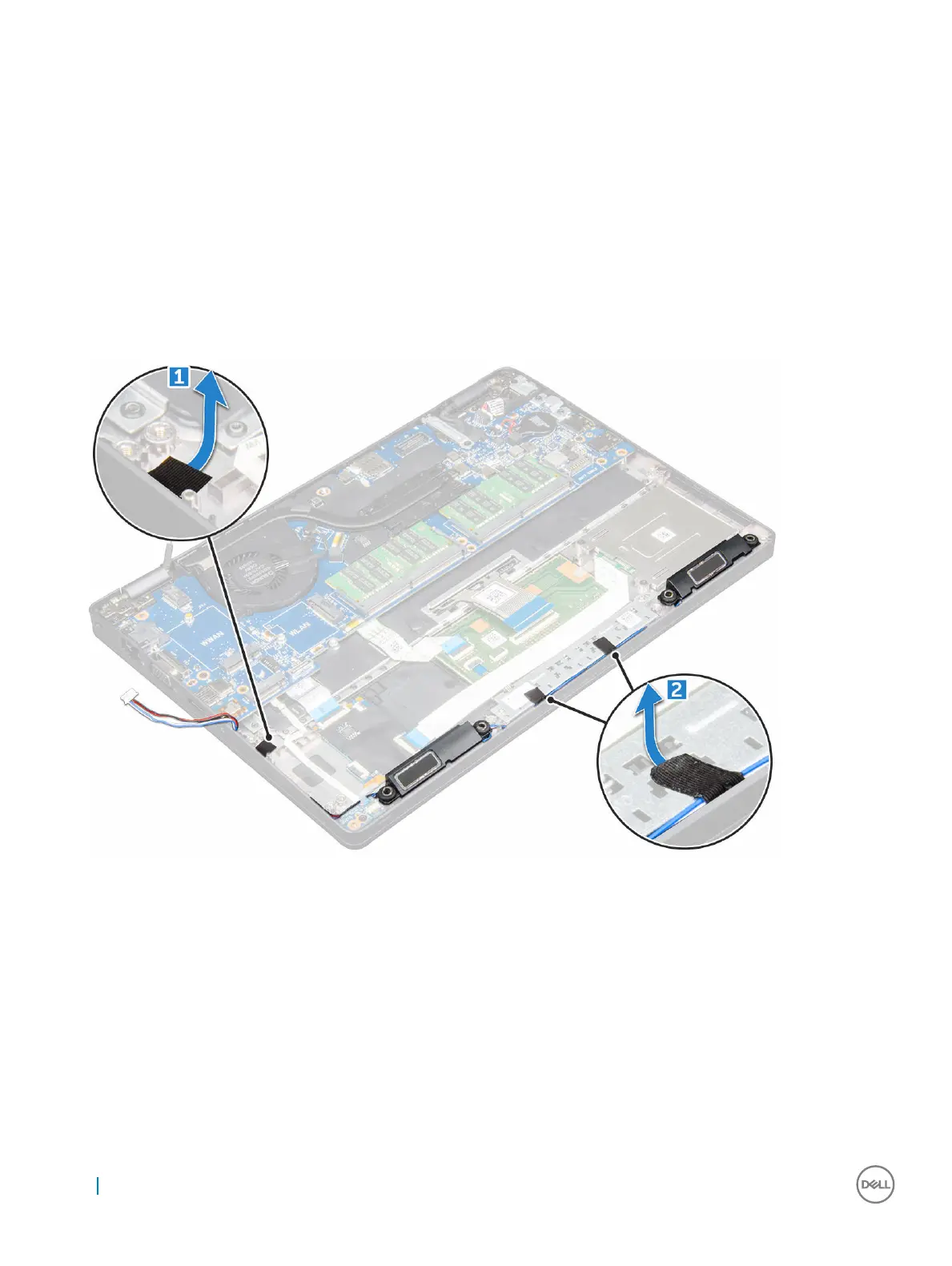

3 Peel the adhesive tapes that secure the speaker cables [1] [2].
4 Lift the speaker away from the computer.
36
Removing and installing components
