Battery
Removing battery
NOTE: 68 WHr battery supports only with the SSD card.
1 Follow the procedure in Before working inside your computer.
2 Remove the base cover.

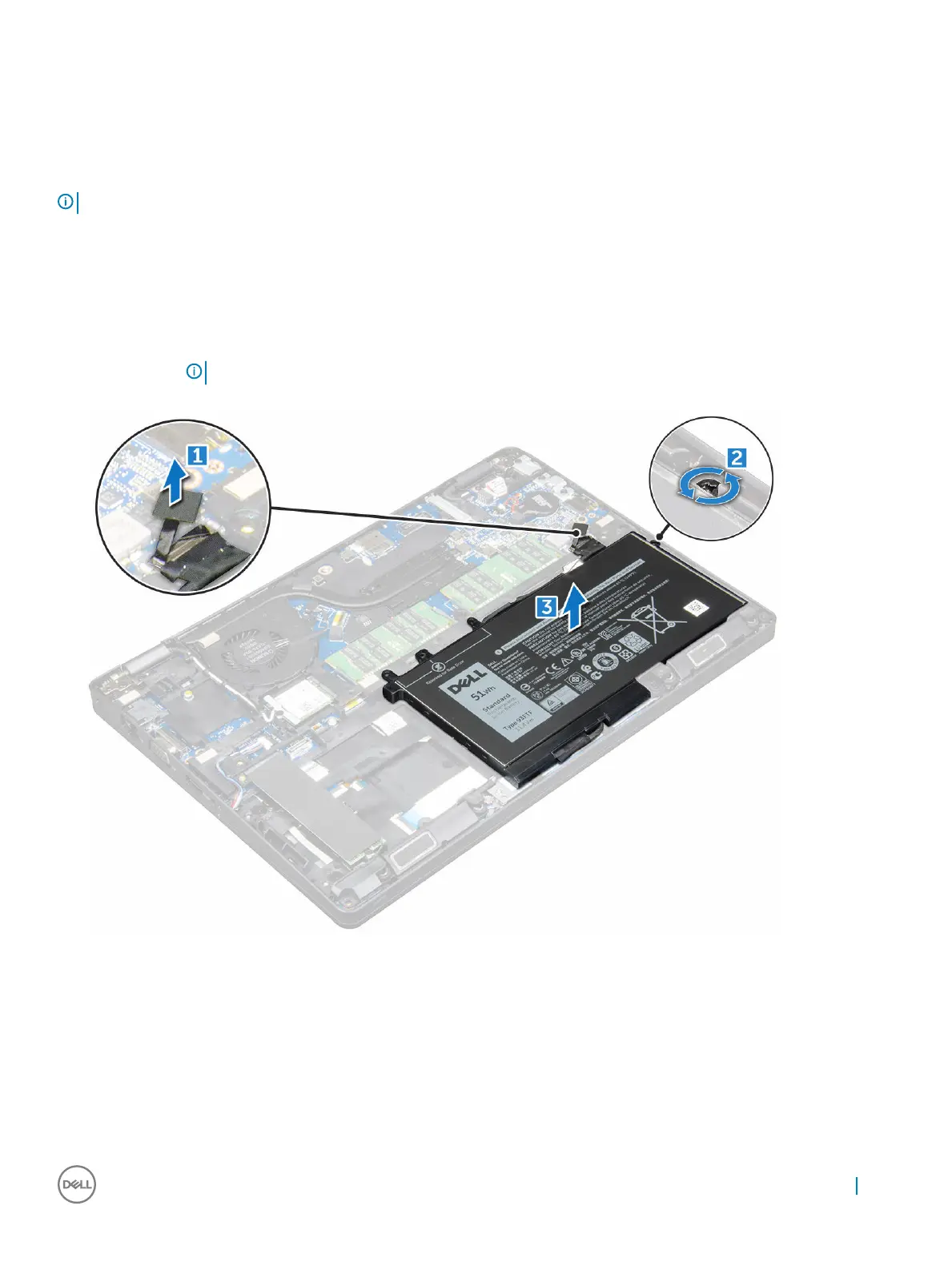

3 To remove the battery:
a Disconnect the battery cable from the connector on the system board [1].
b Unroute the battery cable from the routing channels.
c Remove the M2*6 captive screw that secures the battery to the computer [2].
NOTE: 6-cell battery has 2 screws.
d Lift the battery from the computer [3].
Installing battery
1 Insert the battery into the slot on the computer.
2 Route the battery cable through the routing channels.
3 Tighten the M2*6 captive screw to secure the battery to the computer.
4 Connect the battery cable to the connector on the system board.
5 Install the base cover.
