Dell Latitude 5280 - Installing Hard Drive Assembly; Coin Cell Battery; Removing the Coin Cell Battery

c Lift the hard drive assembly away from the compute.
Installing hard drive assembly
1 Insert the hard drive assembly into the slot on the computer.
2 Tighten the screws to secure the hard drive assembly to the computer.
3 Connect the hard drive cable to the connector on the hard drive and on the system board.
4 Install the:
a battery
b base cover
5 Follow the procedures in After working inside your system.
Coin cell battery
Removing the coin cell battery
1 Follow the procedure in Before working inside your computer.
2 Remove the:
a base cover
b battery

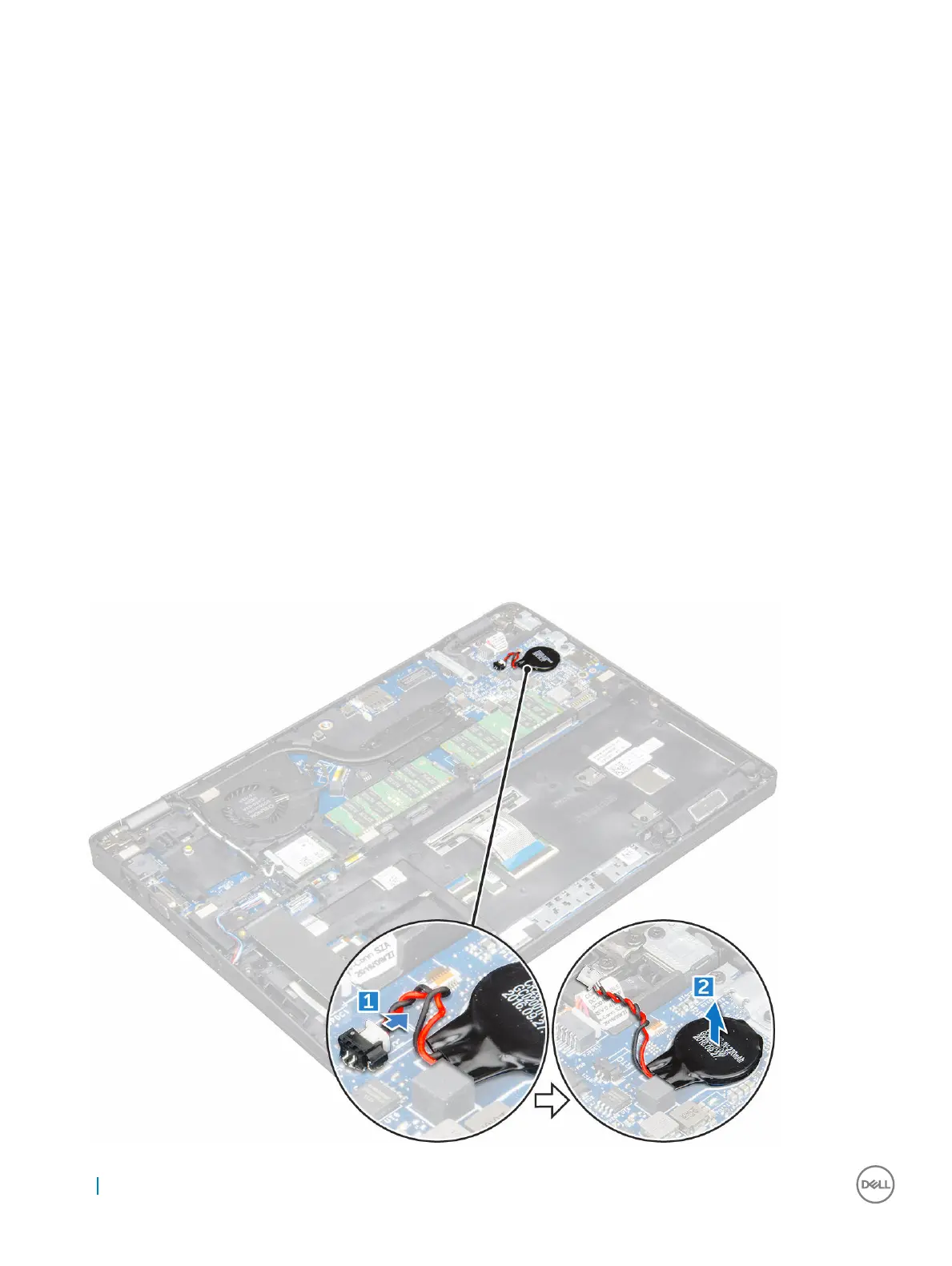

3 To remove the coin cell battery:
a Disconnect the coin cell battery cable from the connector on the system board [1].
b Lift the coin cell battery to release from the adhesive and lift it away from the system board [2].
18
Removing and installing components
