b battery
c WLAN card
d SSD card
e chassis frame

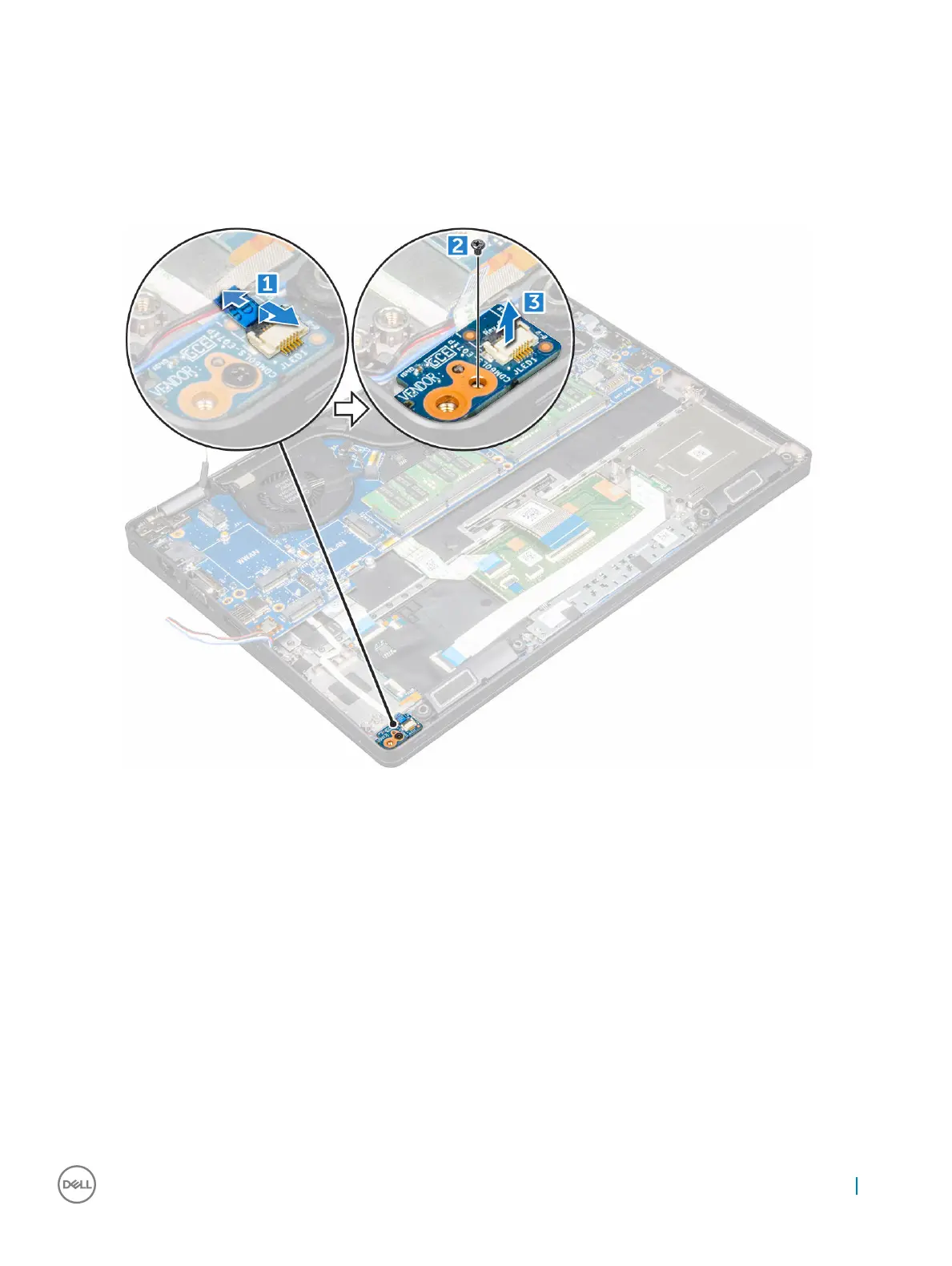

3 To remove the LED board:
a Lift the latch and disconnect the LED board cable from the connector on the LED board [1].
b Remove the M2*3 screw that secures the LED board to the computer [2].
c Lift the LED board away from the computer [3].
Installing LED board
1 Place the LED board into the slot on the computer.
2 Tighten the M2*3 screw to secure the LED board to the computer.
3 Connect the LED board cable to the connector on the LED board.
4 Install the:
a chassis frame
b SSD card
c WLAN card
d battery
e base cover
5 Follow the procedure in After working inside your computer.
Removing and installing components
35
