Dell Latitude 5280 - Solid State Drive (SSD); Removing Optional M.2 Solid State Drive (SSD)

6 Follow the procedure in After working inside your computer.
Solid State Drive (SSD)
Removing optional M.2 Solid State Drive (SSD)
1 Follow the procedure in Before working inside your computer.
2 Remove the:
a base cover
b battery
3 To remove the SSD card:
a Remove the SSD bracket from the SSD card.
NOTE: The SSD bracket is shipped along with the SSD card kit.

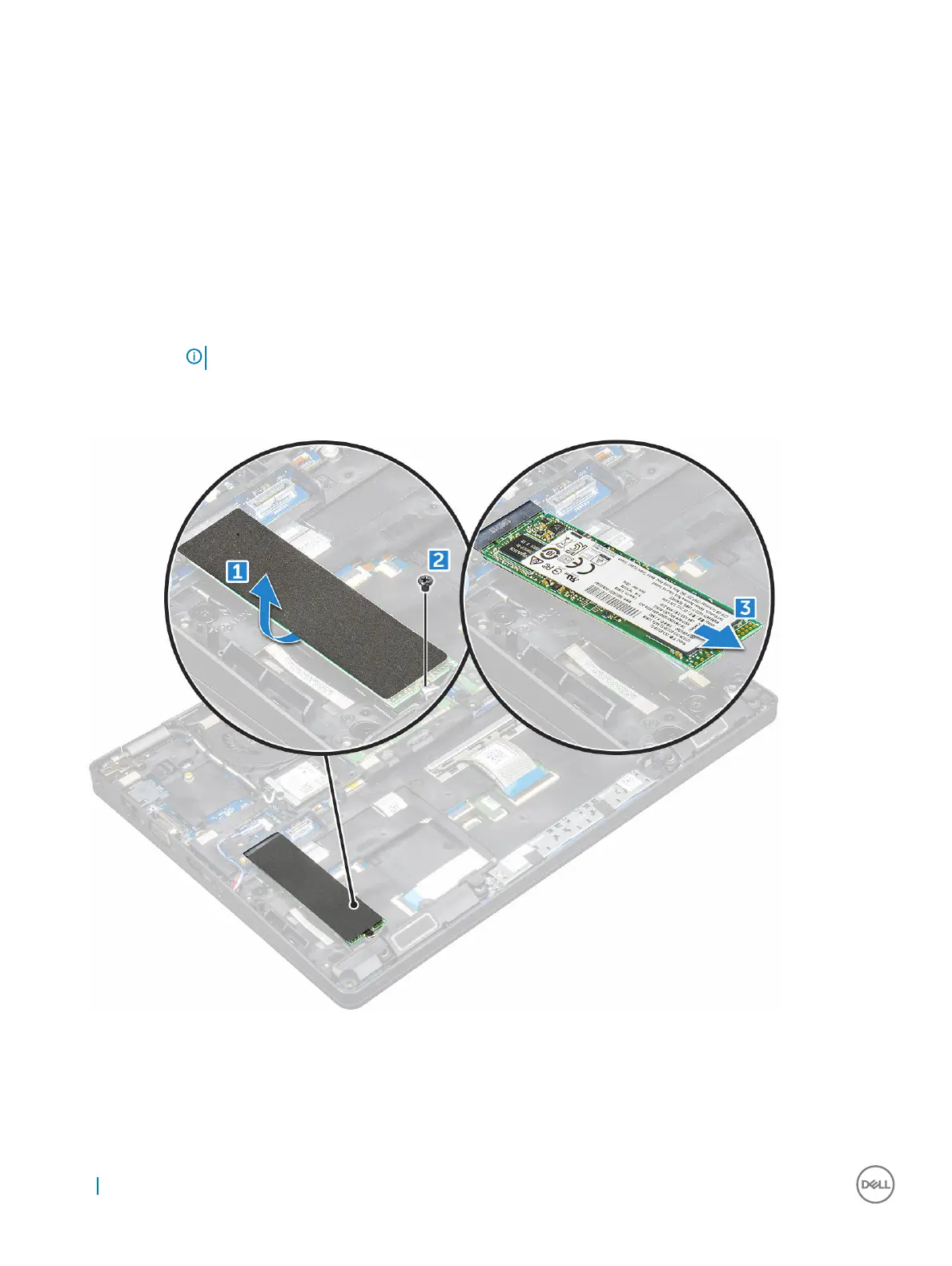

b Peel the adhesive tape that secures the SSD card [1].
c Remove the M2*3 screw that secures the SSD to the computer [2].
d Slide and lift the SSD from the computer [3].
4 To remove the SSD clip:
a Remove the M2*3 screw that secures the SSD clip to the computer [1].
b Lift the SSD clip away from the computer [2].
16
Removing and installing components
