a base cover
b battery
c WLAN card
d display assembly
e display bezel

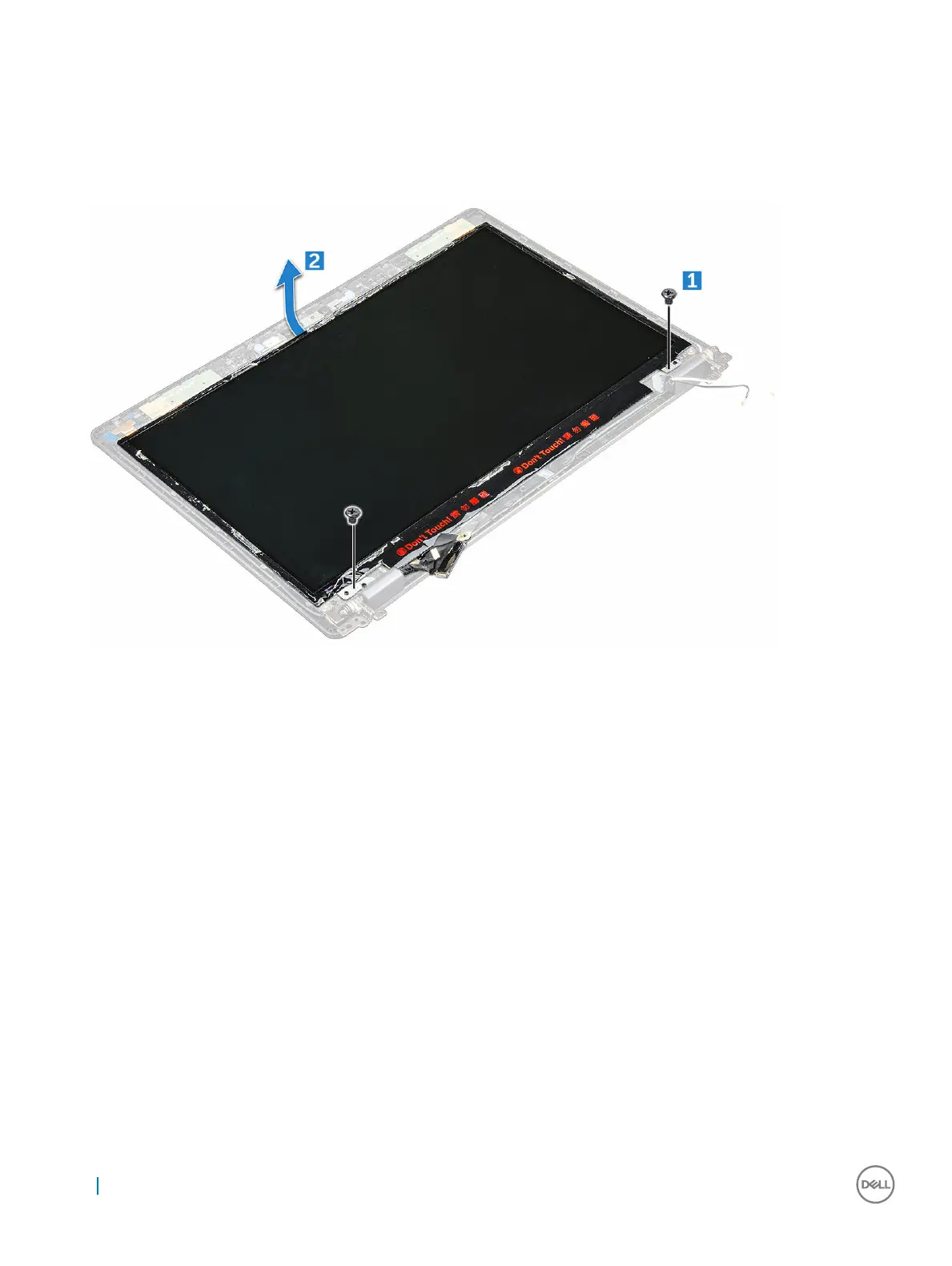

3 Remove the M2*2 screws that secure the display panel to the display assembly [1] and lift to turn over the display panel to access the
eDP cable [2].
4 To remove the display panel:
a Peel the adhesive tape [1].
b Lift the blue tape that secures the eDP cable [2].
c Lift the latch and disconnect the eDP cable from the connector on the display panel [3] [4].
