a base cover
b battery
c WLAN card
d SSD card
e chassis frame

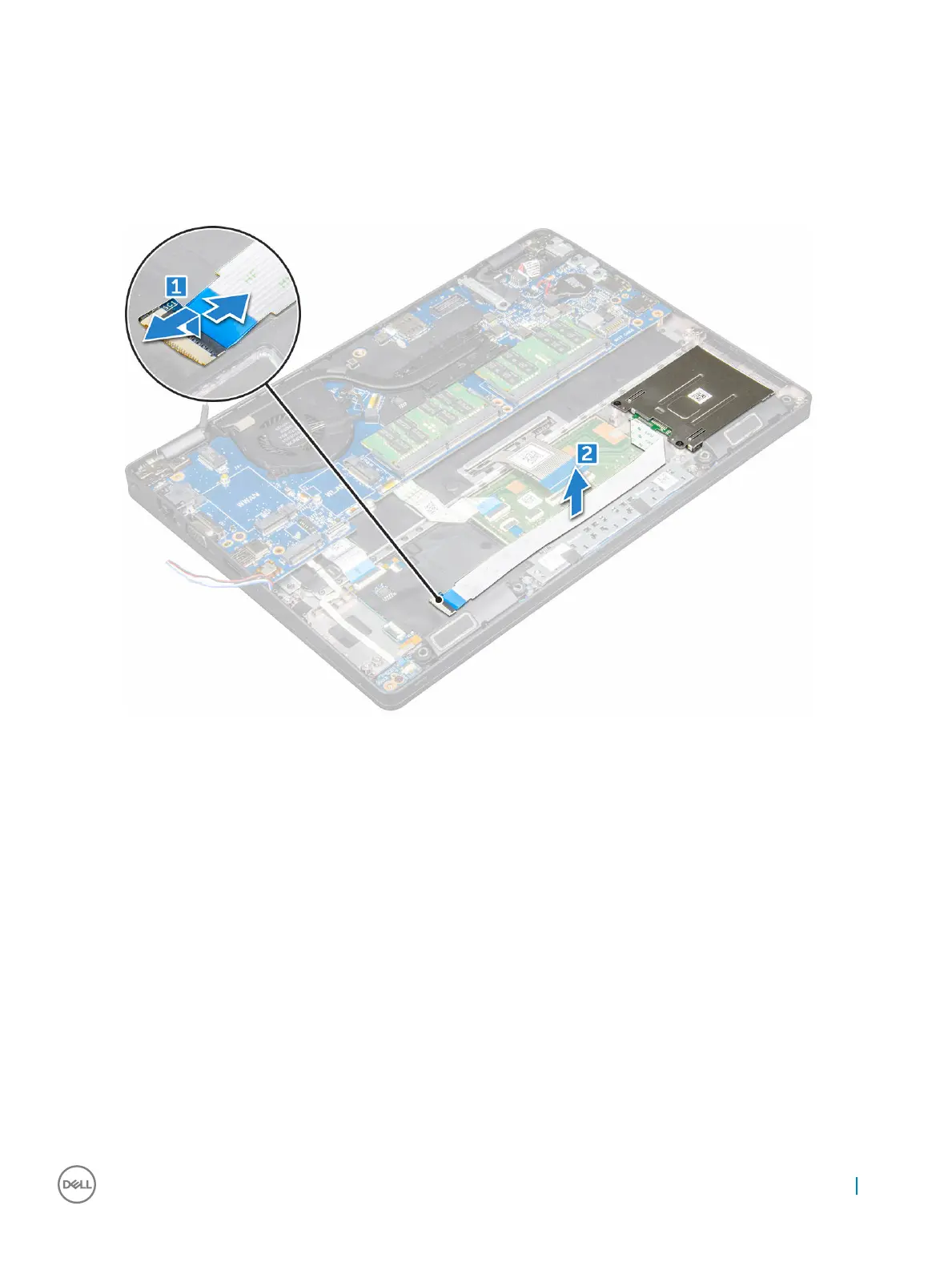

3 To release the smart card reader board:
a Disconnect the smart card reader board board cable from the connector [1].
b Peel the cable to release from the adhesive [2].
4 To remove the smart card reader board:
a Remove the screws that secure the smart card reader board to the palmrest [1].
b Slide and remove the smart card reader from the slot [2].
