Dell Latitude E6520 - Hard Drive; Removing The Hard Drive

Hard Drive 7
Removing The Hard Drive
1. Follow the procedures in Before Working On Your Computer .
2. Remove the
battery .

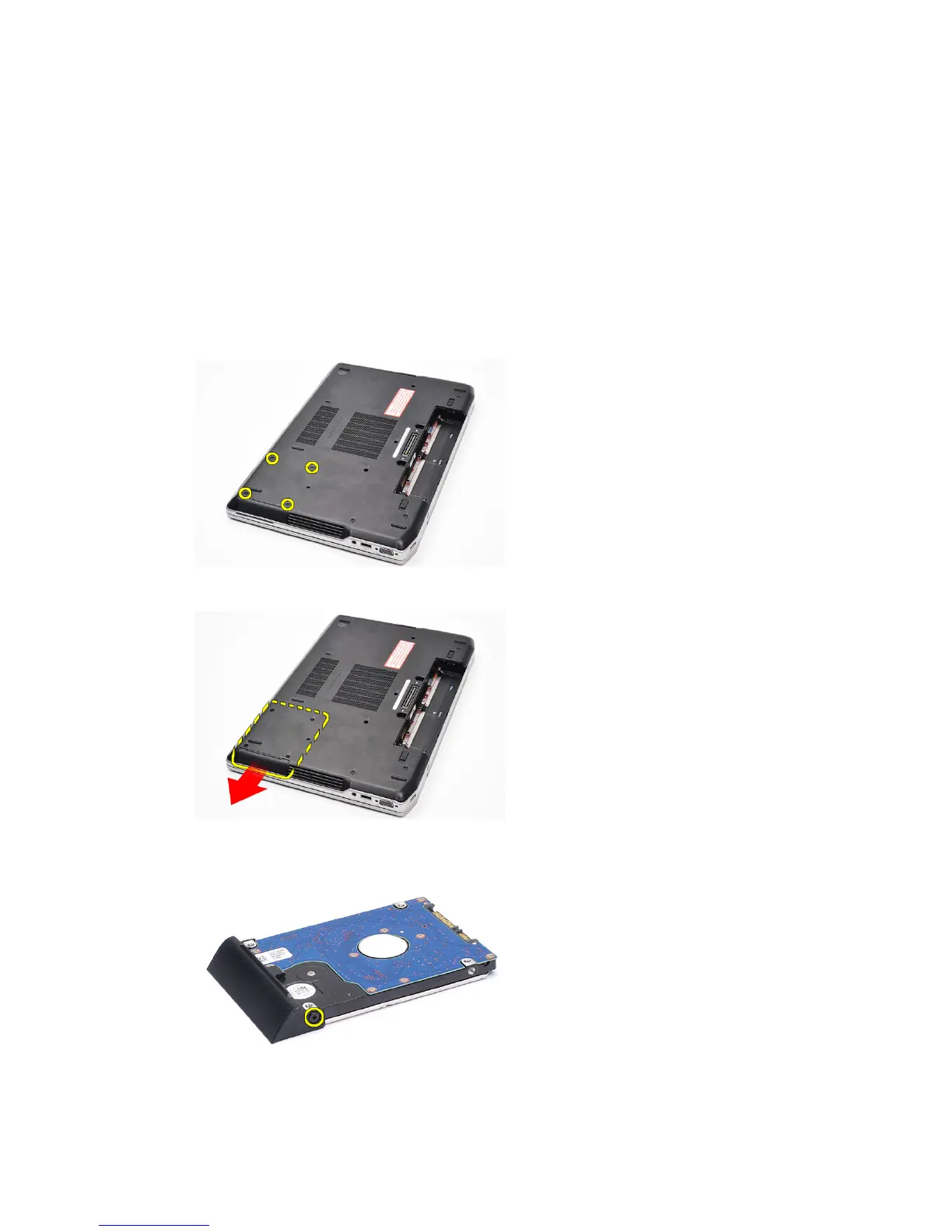

3. Remove the screws that secure the hard drive to the computer.
4. Slide the hard drive out of the computer.
5. Remove the screw that secures the hard-drive caddy to the hard drive.
6. Pull and remove the hard-drive caddy away from the hard drive.
23
