Dell Latitude E6520 - Processor; Removing The Processor

Processor 19
Removing The Processor
1. Follow the procedures in Before Working On Your Computer .
2. Remove the battery .
3. Remove the base cover .
4. Remove the heat-sink .

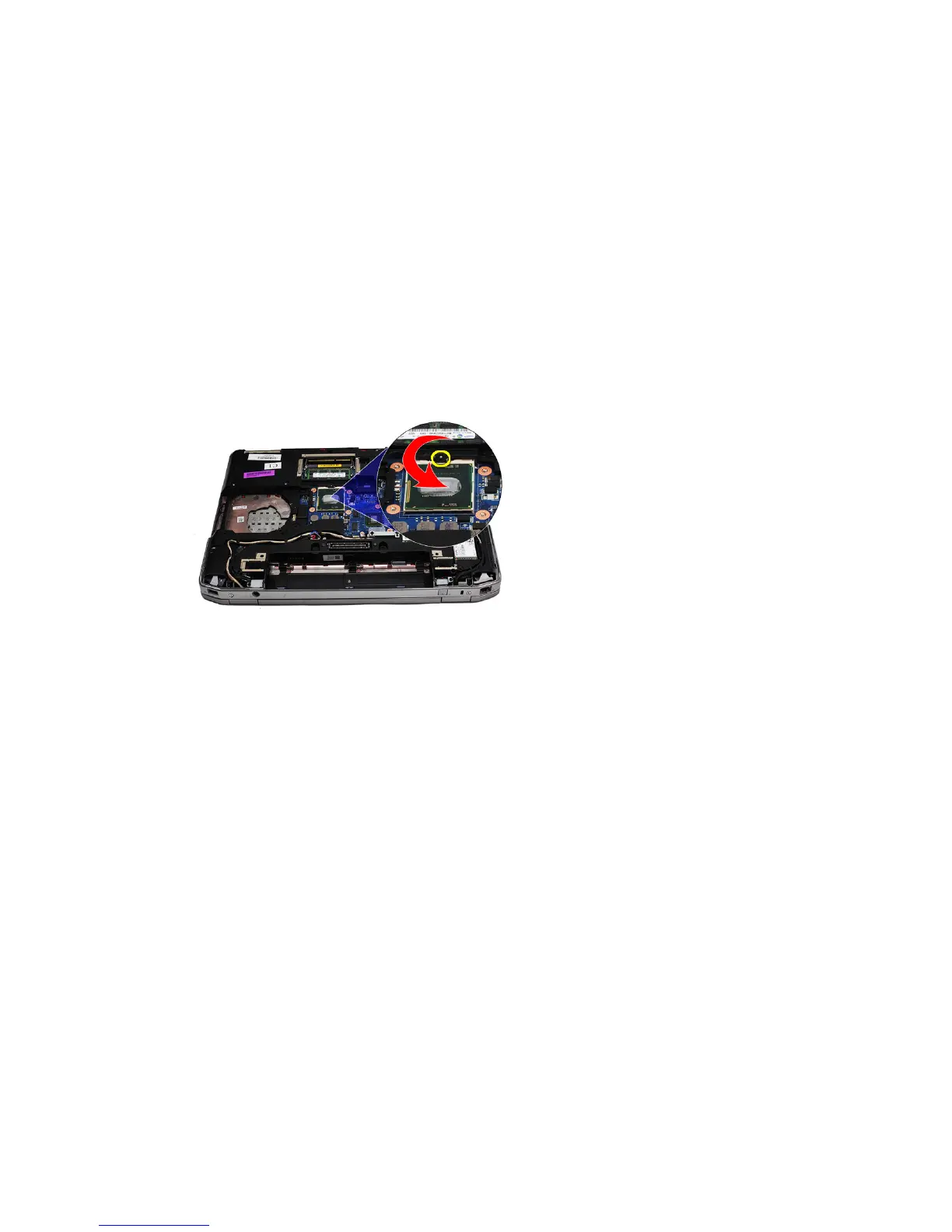

5. Rotate the processor cam lock in a counter-clockwise direction.
6. Lift up and remove the processor from the system board.
51
