Dell Latitude E6520 - 24 Expresscard Cage; Removing the Expresscard Cage

ExpressCard Cage 24
Removing The ExpressCard Cage
1. Follow the procedures in Before Working On Your Computer .
2. Remove the battery .
3. Remove the ExpressCard .
4. Remove the optical drive .
5. Remove the base cover .
6. Remove the hard drive .
7. Remove the bluetooth .
8. Remove the keyboard trim .
9. Remove the keyboard .
10. Remove the palm rest assembly .
11. Remove the display assembly .

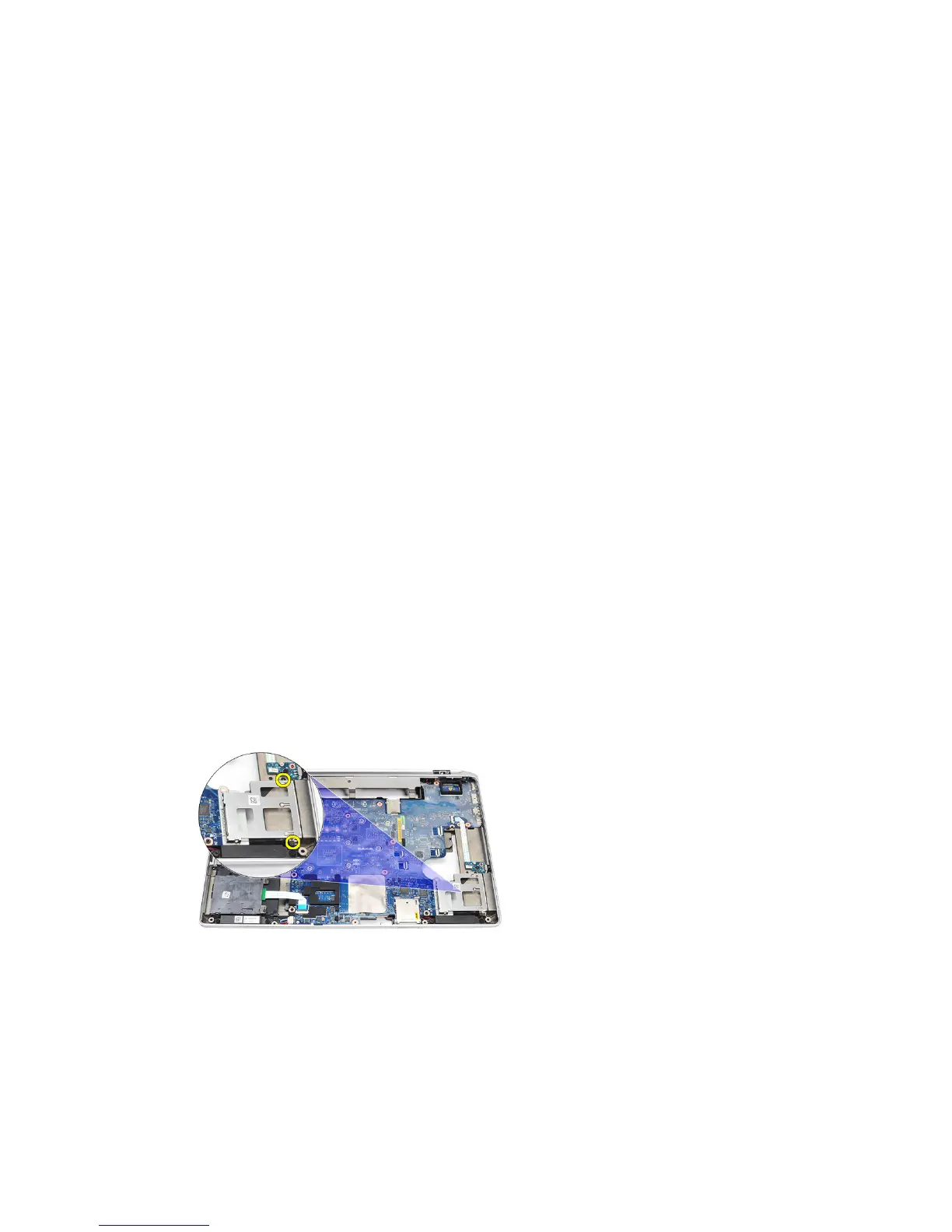

12. Remove the screws securing the ExpressCard cage to the computer.
13. Lift and remove the ExpressCard cage from the computer.
65
