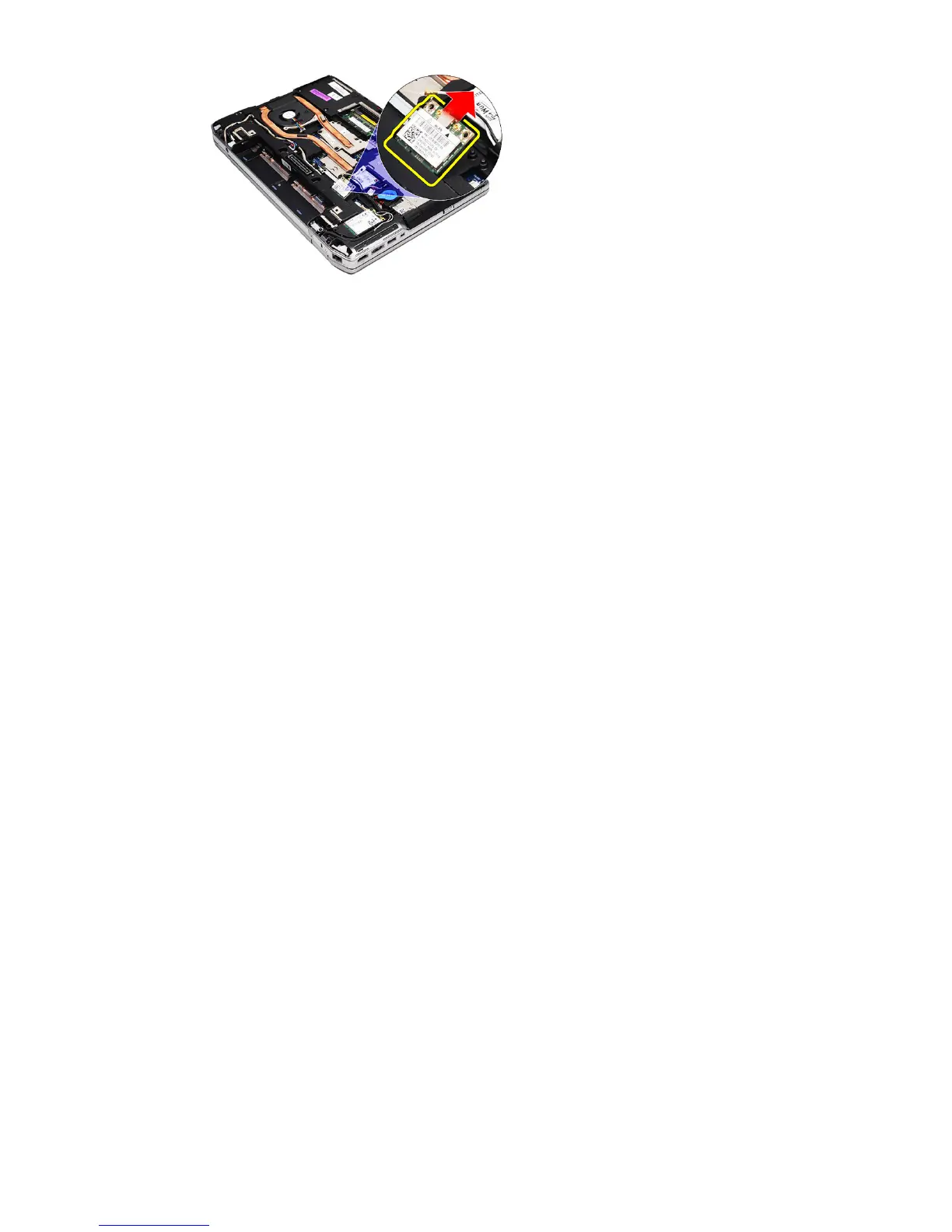

Installing The Wireless Local Area Network (WLAN) Card
1. Insert the WLAN card into its connector at a 45–degree angle into its slot.
2. Connect the antenna cables to their respective connectors marked on the
WLAN card.
3. Replace and tighten the screw to secure the WLAN card to the computer.
4. Install the
base cover
.
5. Install the
battery
.
6. Follow the procedures in
After Working Inside Your Computer
.
44
