Wireless Local Area Network
(WLAN) Card 15
Removing The Wireless Local Area Network (WLAN) Card
1. Follow the procedures in
Before Working On Your Computer
.
2. Remove the
battery
.
3. Remove the
base cover
.

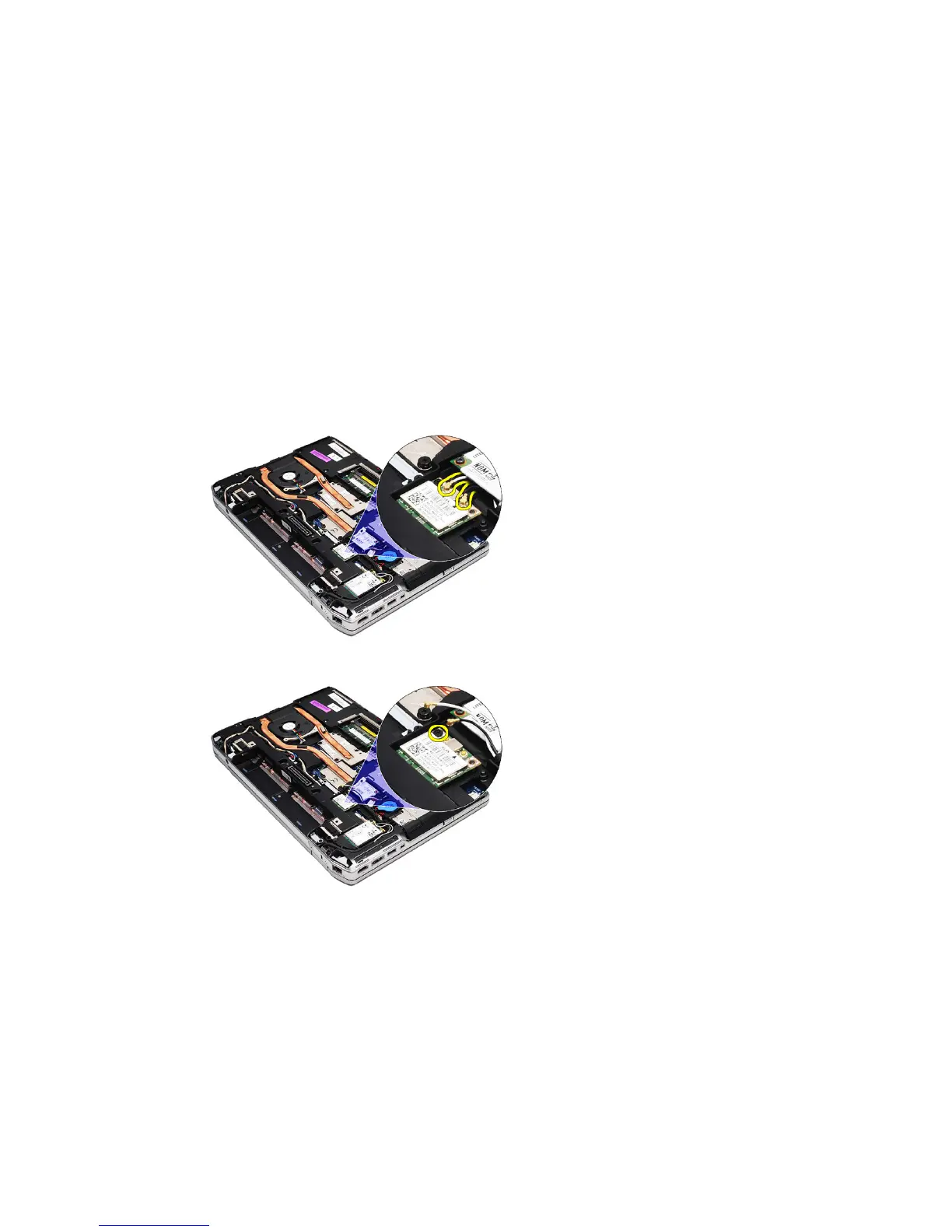

4. Disconnect the antenna cables from the WLAN card.
5. Remove the screw that secures the WLAN card to the computer.
6. Remove the WLAN card from its slot on the system board.
43
