Dell Latitude E6520 - Installing The Heat-Sink

Installing The Heat-Sink

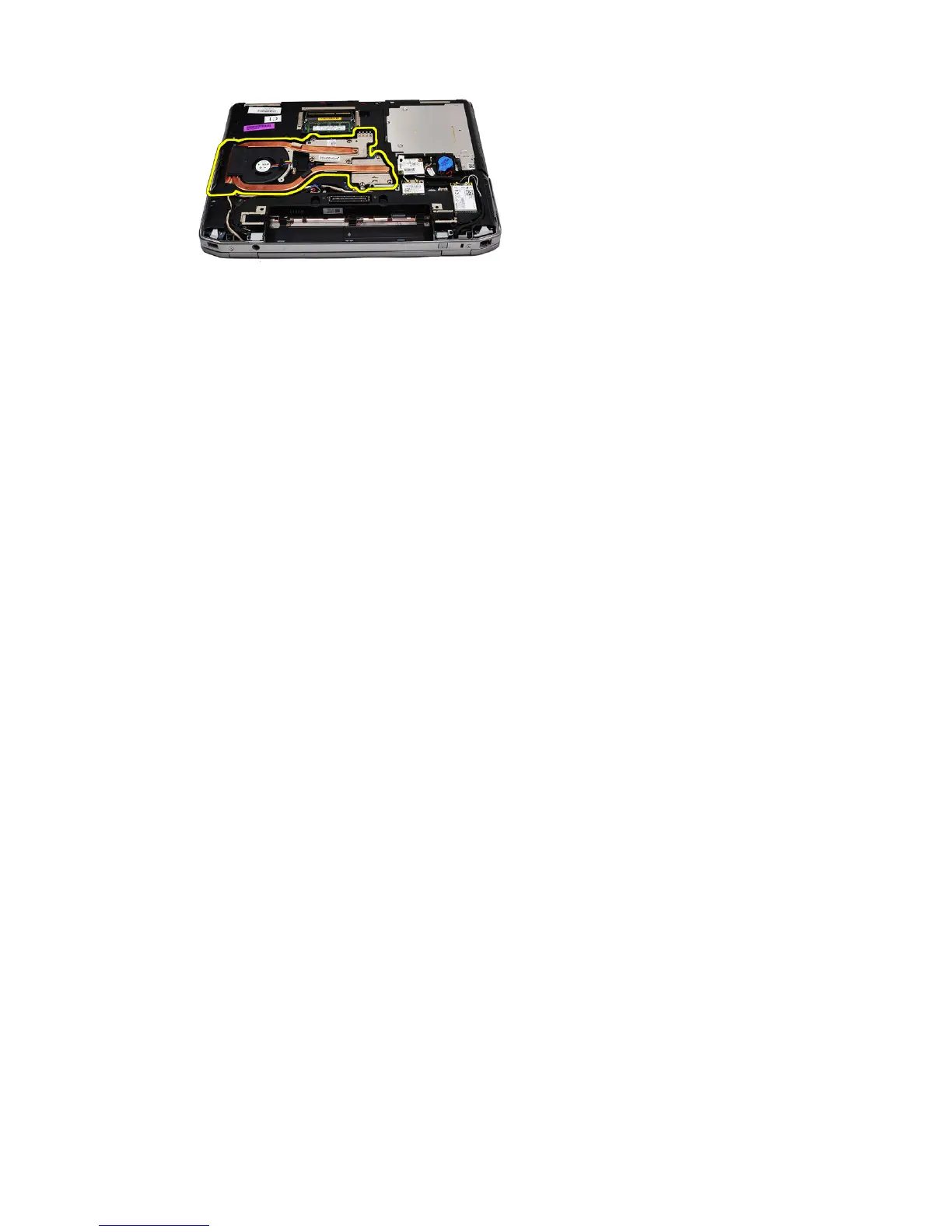

1. Slide the heat-sink into its original position in the system board.
2. Tighten the screws to secure the heat-sink assembly to the system board.
3. Connect the heat-sink cable to the system board.
4. Install the
base cover .
5. Install the battery .
6. Follow the procedures in After Working Inside Your Computer .
