Dell Latitude E6520 - 16 Wireless Wide Area Network (WWAN) Card; Removing the Wireless Wide Area Network (WWAN) Card

Wireless Wide Area Network
(WWAN) Card 16

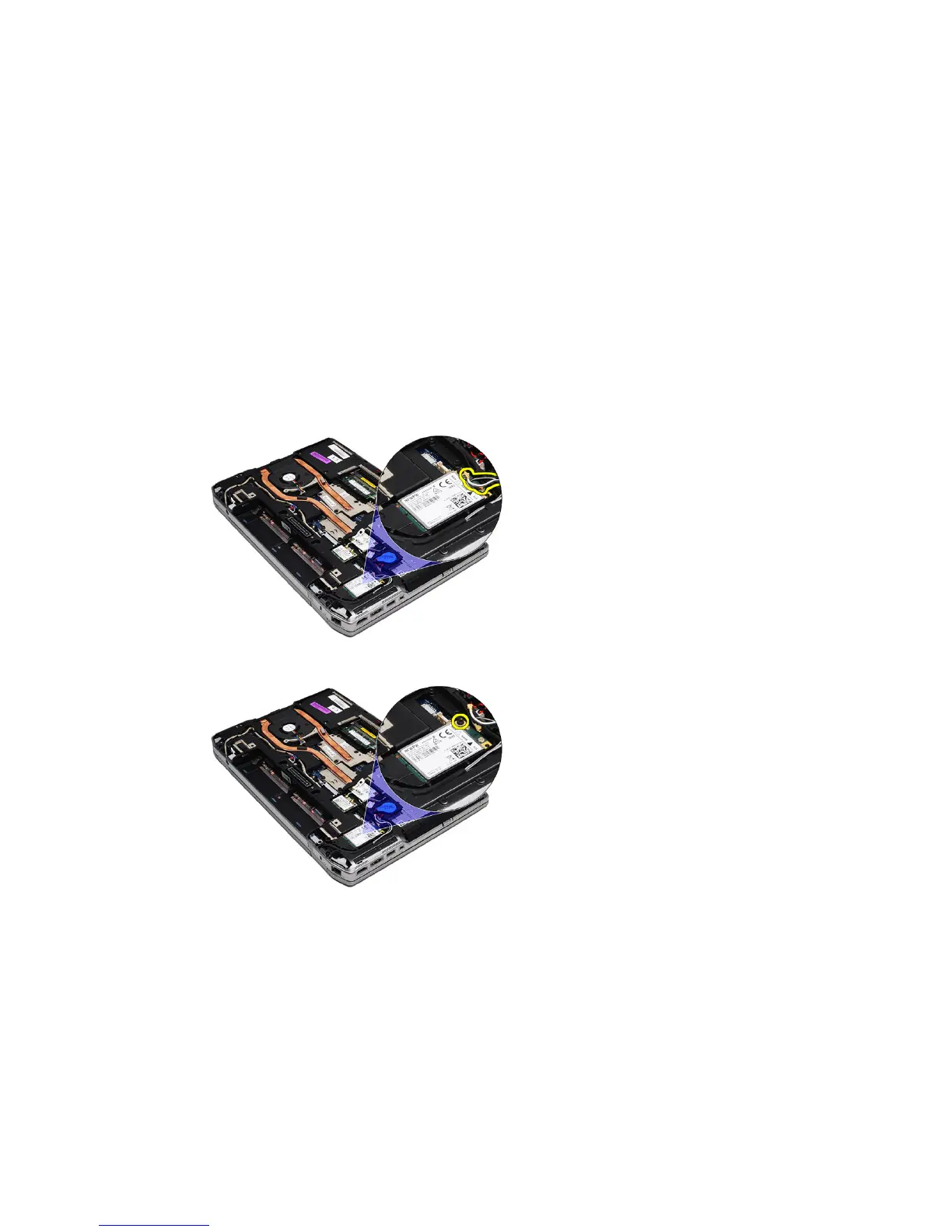

Removing The Wireless Wide Area Network (WWAN) Card
1. Follow the procedures in Before Working On Your Computer .
2. Remove the battery .
3. Remove the base cover .
4. Disconnect the antenna cables from the WWAN card.
5. Remove the screw that secures the WWAN card to the computer.
6. Remove the WWAN card from the computer.
45
