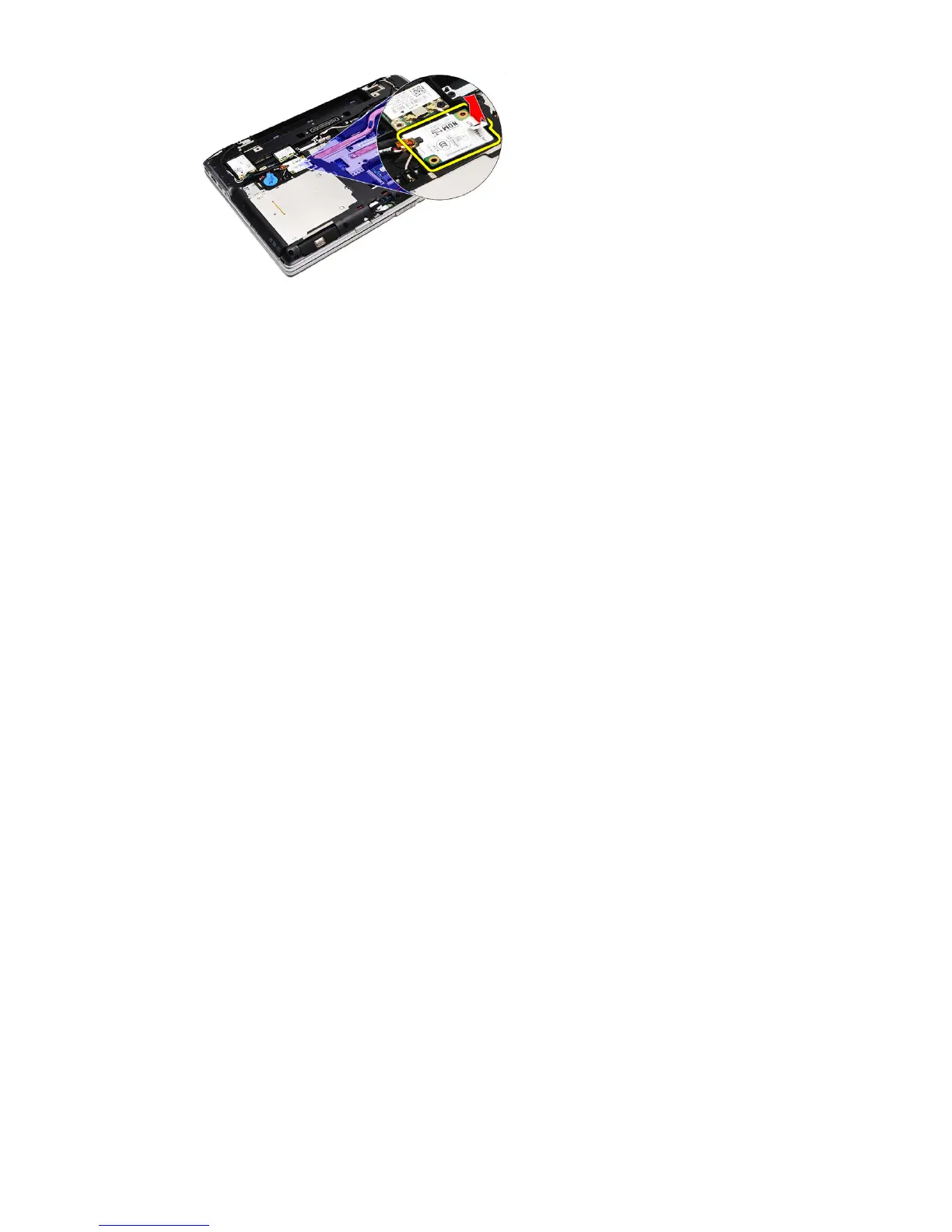

Installing The Modem Card
1. Fasten the connector attaching the modem card to the system board.
2. Insert the modem into its compartment and press on the module to connect
it to the system board.
3. Connect the modem cable to the system board.
4. Tighten the screw to secure the modem card to the computer.
5. Install the
base cover
.
6. Install the
battery
.
7. Follow the procedures in
After working inside your computer
.
38
