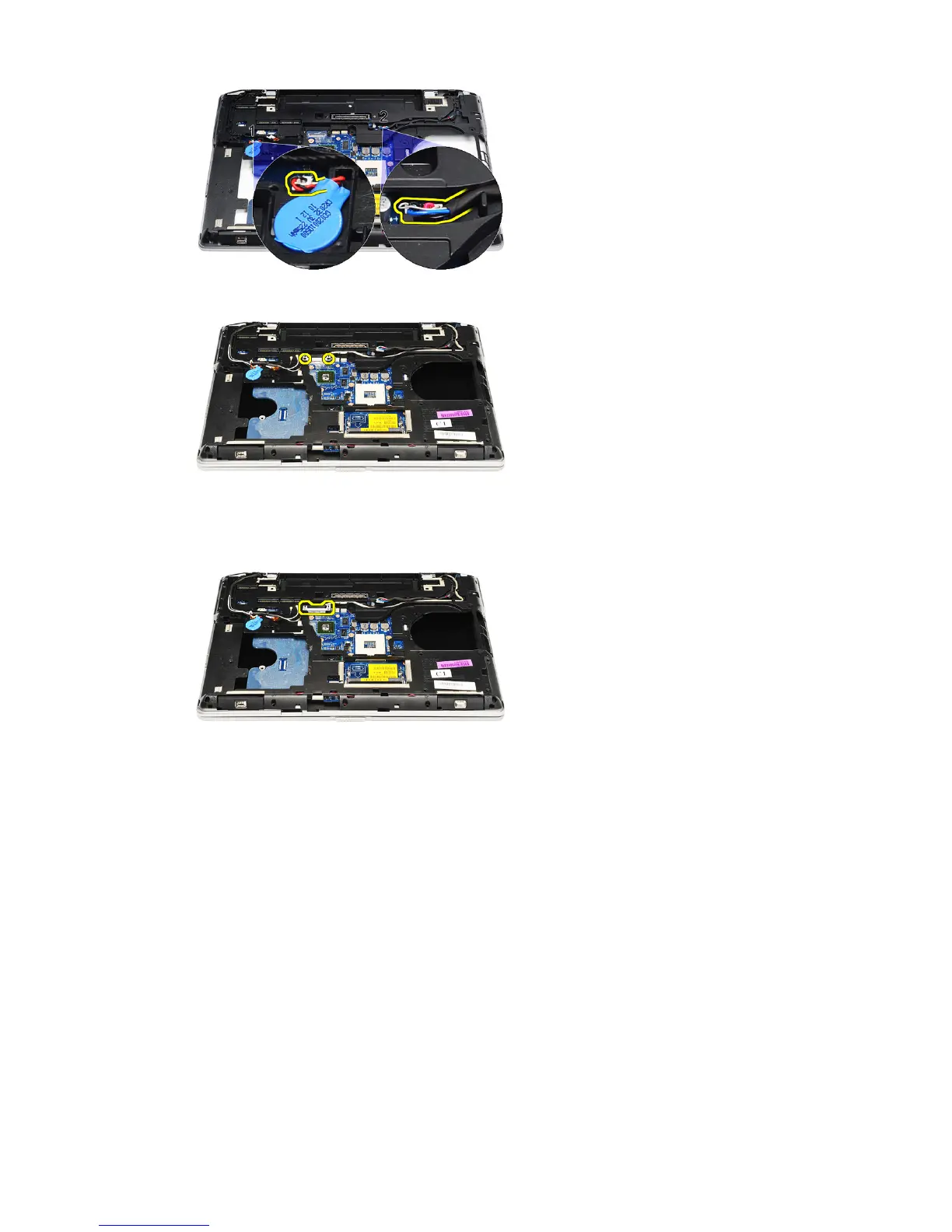

21. Remove the two screws securing the LVDS bracket.

22. Remove the LVDS bracket.

23. Disconnect the following cables from the system board:

• LVDS

• camera/microphone

• touch screen (if applicable)

70
