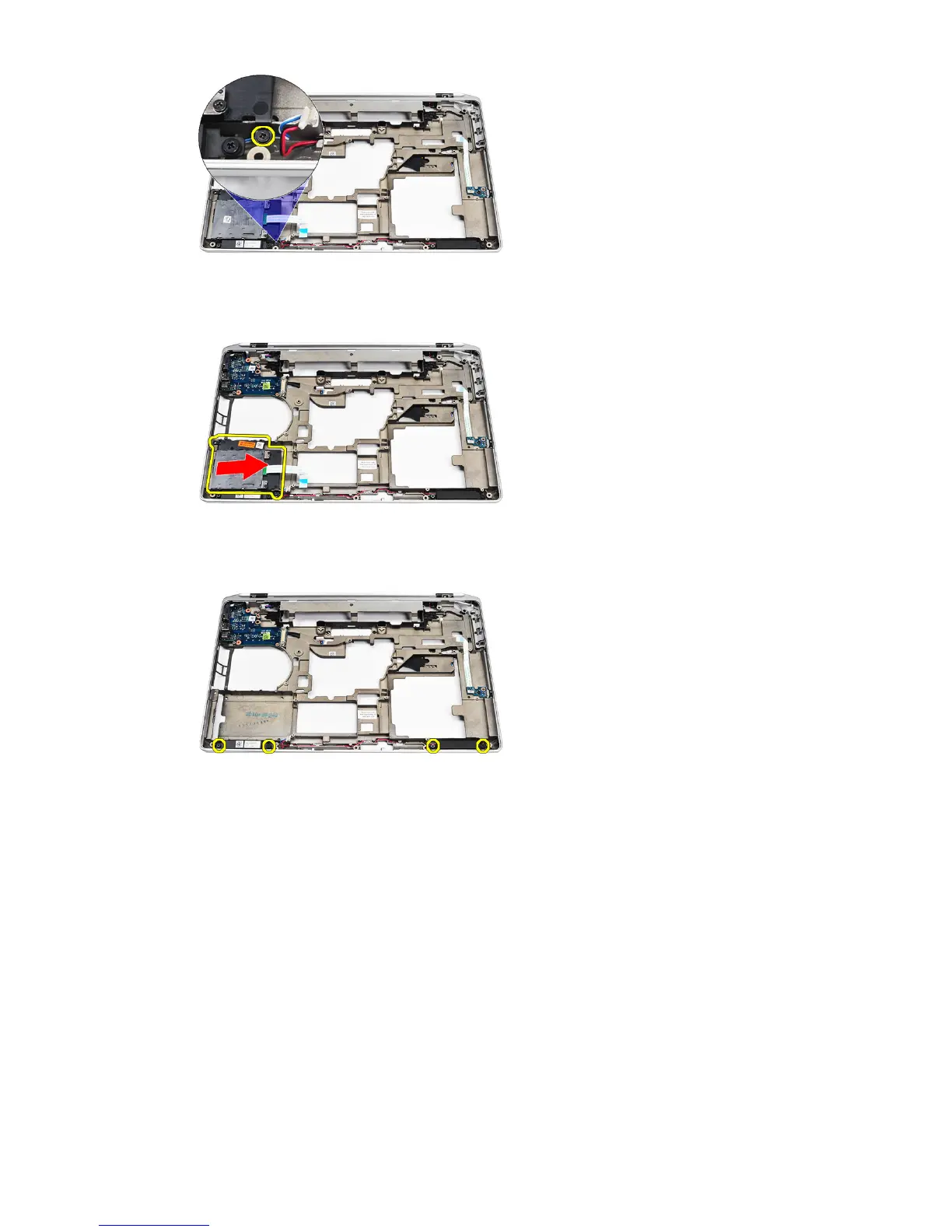

22. Slide and remove the hard drive support plate.

23. Remove the screws that secures the speakers.

24. Unthread the speaker cables and remove the speakers.

76
