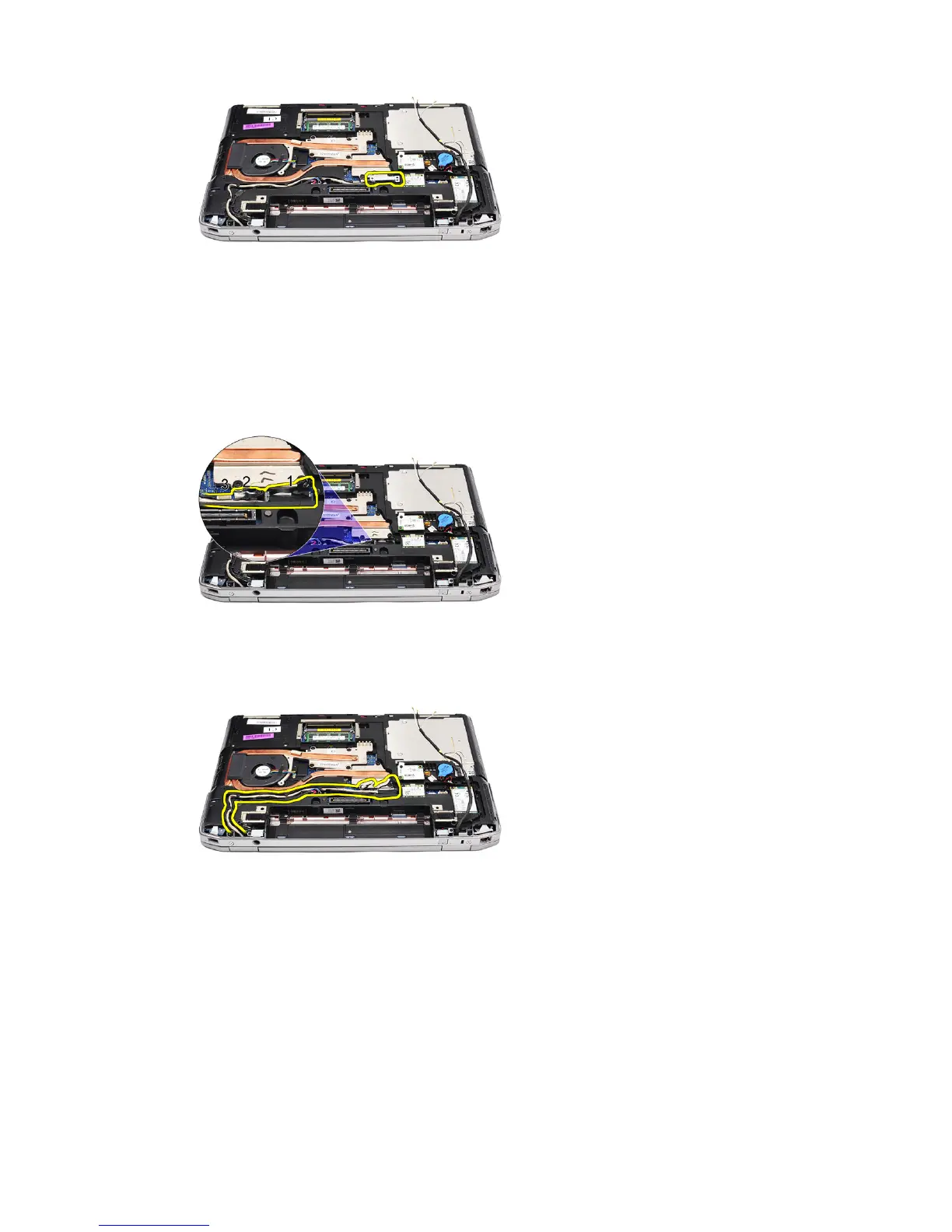

7. Disconnect the following cables from the system board:

• LVDS

• camera

• touch screen

8. Unthread the cables.

9. Remove the screws that secures the display assembly to the computer.

84

Table of Contents

Notes, Cautions, and Warnings2
- Table of Contents3
1 Working on Your Computer9
- Before Working Inside Your Computer9
- Recommended Tools10
- Turning off Your Computer11
- After Working Inside Your Computer11
2 Secure Digital (SD) Card13
- Removing the Secure Digital (SD) Card13
- Installing the Secure Digital (SD) Card13
3 Expresscard15
- Removing the Expresscard15
- Installing the Expresscard15
4 Modem Connector Plug17
- Removing the Modem Connector Plug17
- Installing the Modem Connector Plug17
5 Battery19
- Removing the Battery19
- Installing the Battery19
6 Subscriber Identity Module (SIM) Card21
- Removing the Subscriber Identity Module (SIM) Card21
- Installing the Subscriber Identity Module (SIM) Card21
7 Hard Drive23
- Removing the Hard Drive23
- Installing the Hard Drive24
8 Optical Drive25
- Removing the Optical Drive25
- Installing the Optical Drive27
9 Base Cover29
- Removing the Base Cover29
- Installing the Base Cover30
10 Memory31
- Removing the Memory31
- Installing the Memory32
11 Bluetooth Card33
- Removing Bluetooth Card33
- Installing the Bluetooth Card34
12 Coin-Cell Battery35
- Removing the Coin-Cell Battery35
- Installing the Coin-Cell Battery35
13 Modem Card37
- Removing the Modem Card37
- Installing the Modem Card38
14 Modem Connector39
- Removing the Modem Connector39
- Installing the Modem Connector41
15 Wireless Local Area Network (WLAN) Card43
- Removing the Wireless Local Area Network (WLAN) Card43
- Installing the Wireless Local Area Network (WLAN) Card44
16 Wireless Wide Area Network (WWAN) Card45
- Removing the Wireless Wide Area Network (WWAN) Card45
- Installing the Wireless Wide Area Network (WWAN) Card46
17 Power Connector47
- Removing the Power Connector47
- Installing the Power Connector48
18 Heat Sink49
- Removing the Heat-Sink49
- Installing the Heat-Sink50
19 Processor51
- Removing the Processor51
- Installing the Processor52
20 Keyboard Trim53
- Removing the Keyboard Trim53
- Installing the Keyboard Trim54
21 Keyboard55
- Removing the Keyboard55
- Installing the Keyboard57
22 Palm Rest59
- Removing the Palm Rest Assembly59
- Installing the Palm Rest Assembly60
23 Smart Card Reader63
- Removing the Smart Card Reader63
- Installing the Smart Card Reader64
24 Expresscard Cage65
- Removing the Expresscard Cage65
- Installing the Expresscard Cage66
25 Wireless Switch Board67
- Removing the Wireless Switch Board67
- Installing the Wireless Switch Board68
26 System Board69
- Removing the System Board69
- Installing the System Board72
27 Speaker75
- Removing the Speakers75
- Installing the Speakers77
28 Input/Output Panel79
- Removing the Input/Output (I/O) Panel79
- Installing the Input/Output (I/O) Panel81
29 Display Assembly83
- Removing the Display Assembly83
- Installing the Display Assembly86
30 Display Bezel87
- Removing the Display Bezel87
- Installing the Display Bezel87
31 Display Panel89
- Removing the Display Panel89
- Installing the Display Panel90
32 Camera91
- Removing the Camera91
- Installing the Camera91
33 Specifications93
- Technical Specifications93
34 System Setup99
- System Setup Overview99
- Entering System Setup99
- System Setup Menu Options99
35 Diagnostics113
- Device Status Lights113
- Battery Status Lights113
- LED Error Codes113
36 Contacting Dell117
