• Plastic scribe
NOTE: The #0 screw driver is for screws 0-1 and the #1 screw driver is for screws 2-4
Screw size list

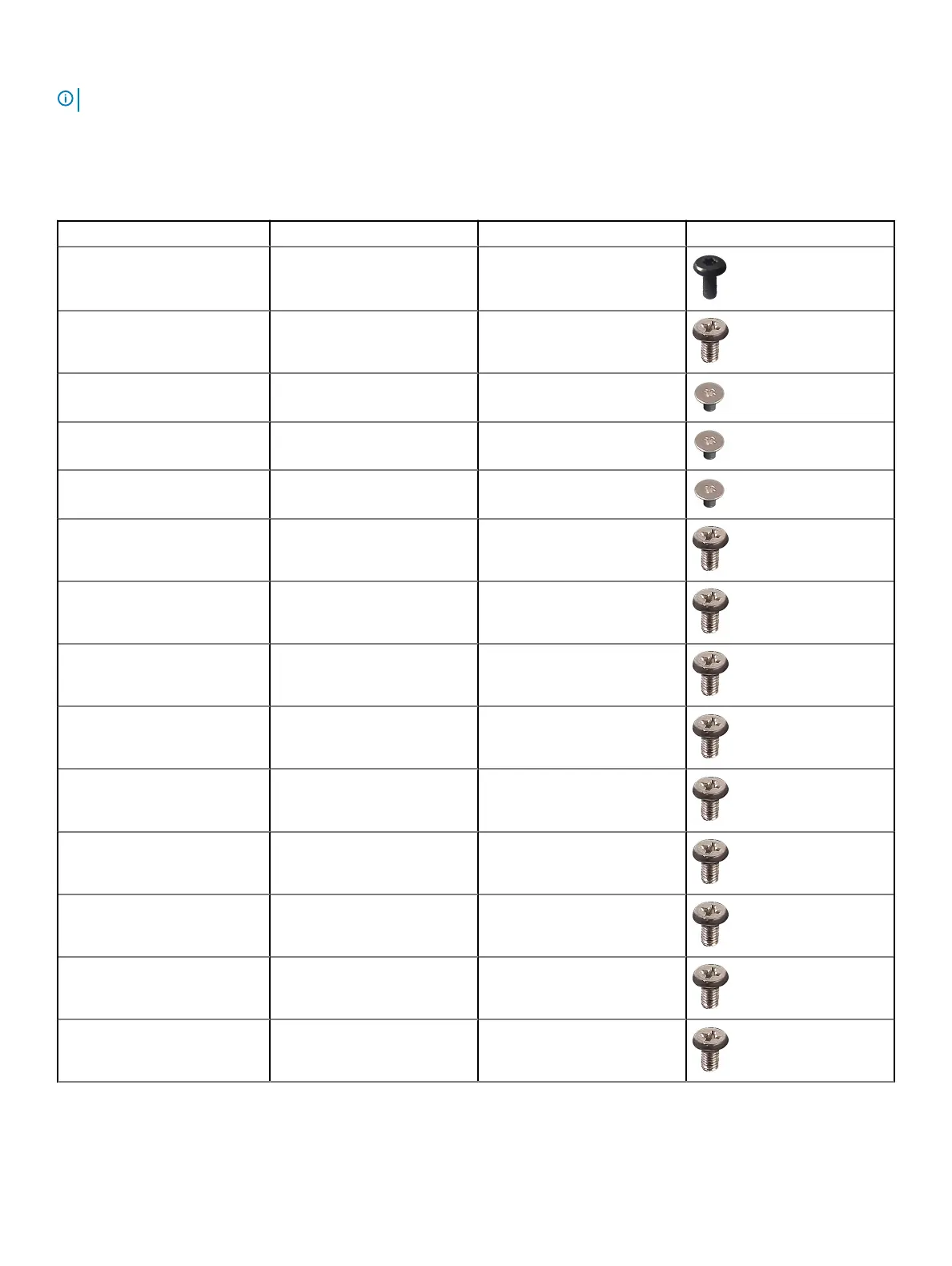

Table 3. OptiPlex 5260 All-in-One
Component Screw type Quantity Screw image
Cable cover M3x9 1
System board shield M3x5 5
Solid-state drive/Intel Optane
card
M2x2.5 1
WLAN card shield M2x2.5 2
WLAN card M2x2.5 1
System fan M3 x5 3
Pop-up camera assembly M3x5 2
Pop-up camera bezel M3x5 5
Base cover M3x5 4
PSU cable M3x5 1
Power supply unit—PSU M3x5 1
Power supply unit fan—PSU fan M3x5 2
Input and Output bracket M3x5 3
System board M3x5 9
Removing and Installing components 15
