Dell OptiPlex 5260 - Rubber Feet

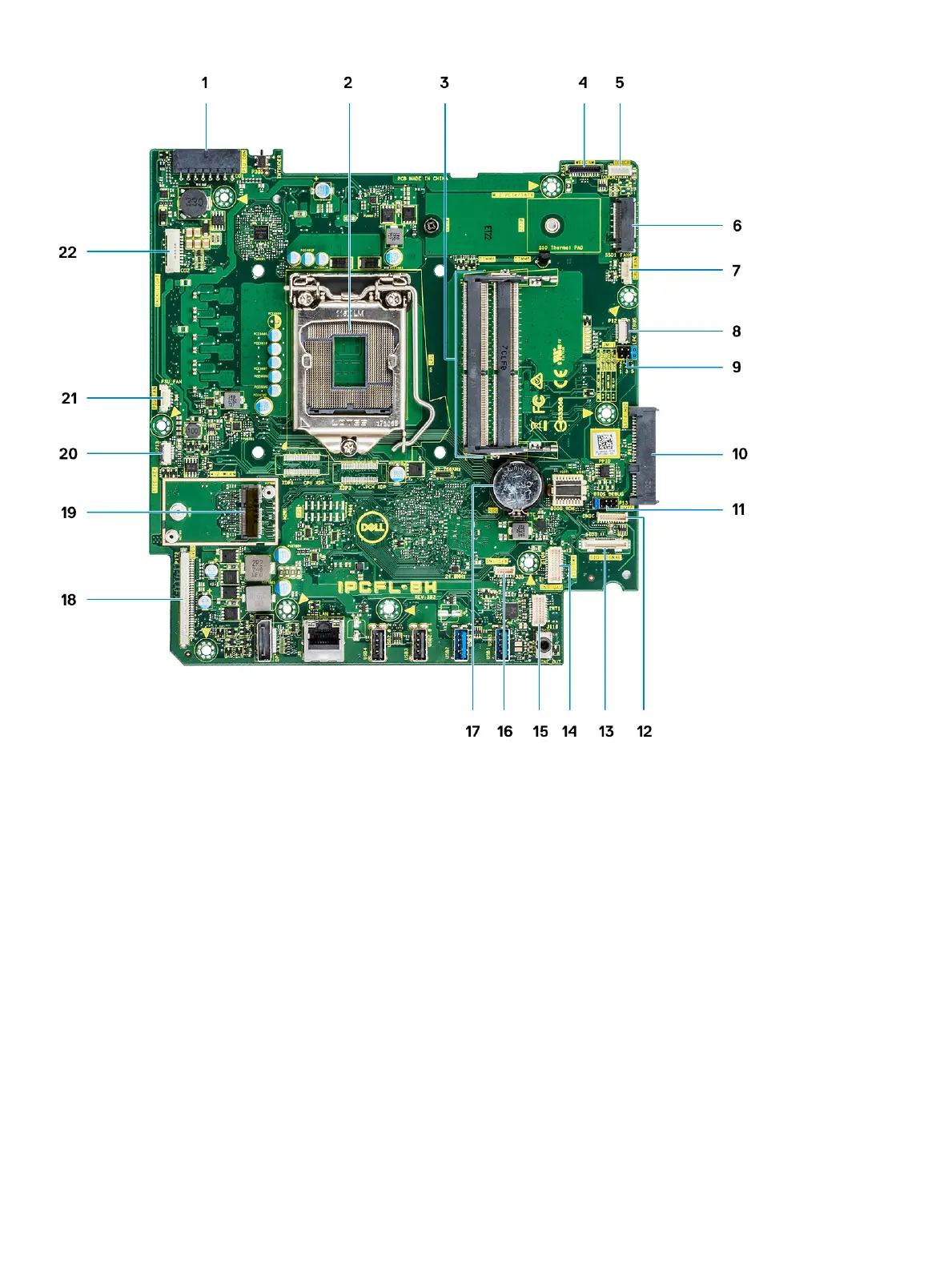

1 PSU power connector 2 Processor
3 Memory slots 4 Webcam connector
5 Touch screen cable connector 6 M.2 PCIe/SATA slot
7 System fan connector 8 LPC_Debug
9 Service mode jumper/Password clear jumper/CMOS clear
jumper
10 SATA HDD slot
11 SPI header 12 DMIC connector
13 SIO signal connector 14 SIO power connector
15 UAJ connector 16 INT_SPK connector
17 Coin cell battery 18 LVDS connector
19 M.2 WLAN slot 20 Power board button connector
21 PSU fan connector 22 Back light connector
Rubber feet
Removing and Installing components
17
