Dell OptiPlex 5260 - Installing the System Fan

Installing the system fan

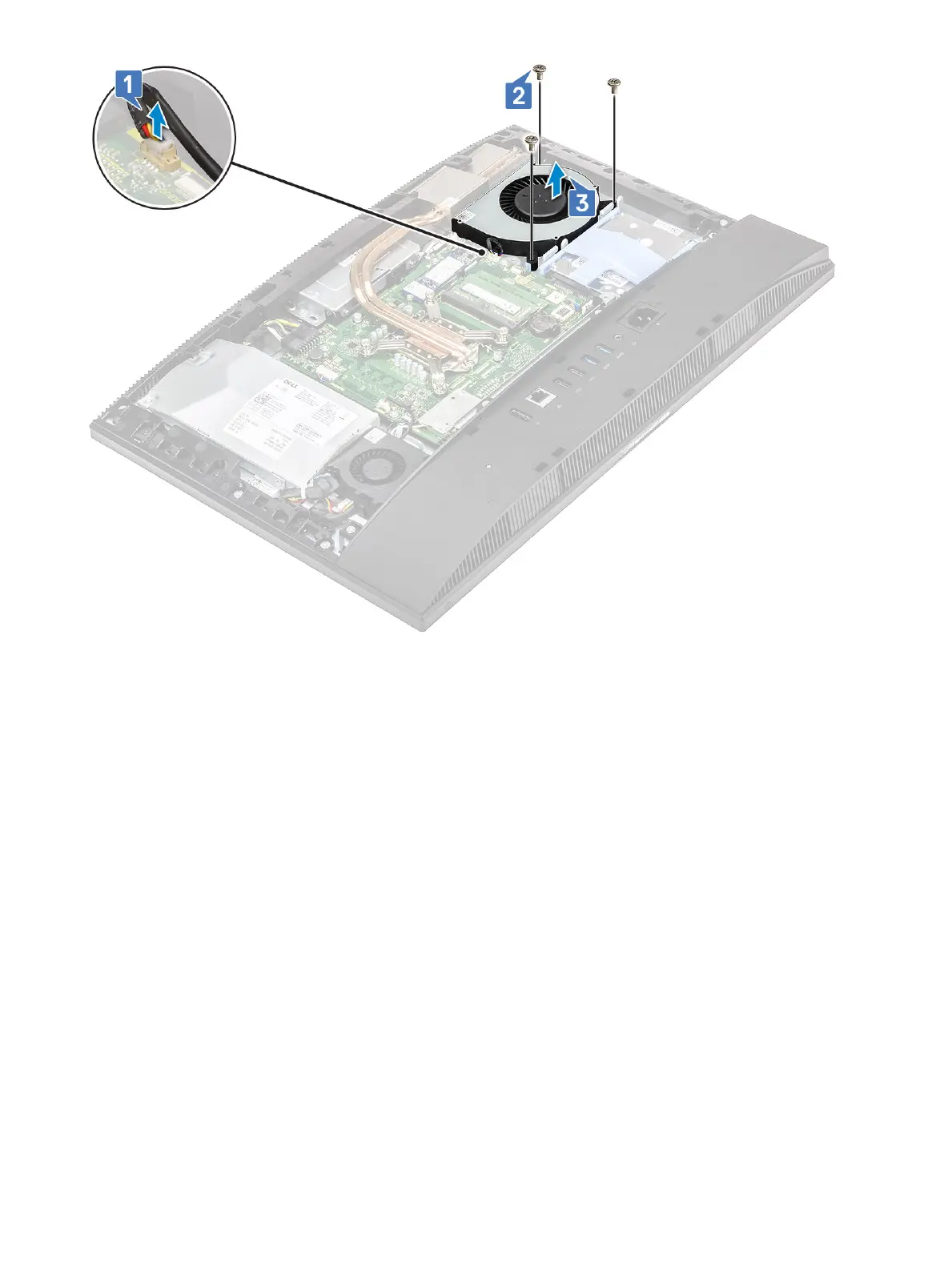

1 Align the screw slots on the system fan with the screw slots on the display assembly base [1].
2 Replace the three screws (M3x5) that secure the system fan to the display assembly base [2].
3 Connect the system fan cable to the socket on the system board [3].
42
Removing and Installing components
