Dell OptiPlex 5260 - Cable Cover - Optional; Removing the Cable Cover

2 Install the Stand.
3 Follow the procedure in After working inside your computer
Cable cover - optional
Removing the cable cover
1 Follow the procedure in Before working inside your computer.
2 Remove the Stand.

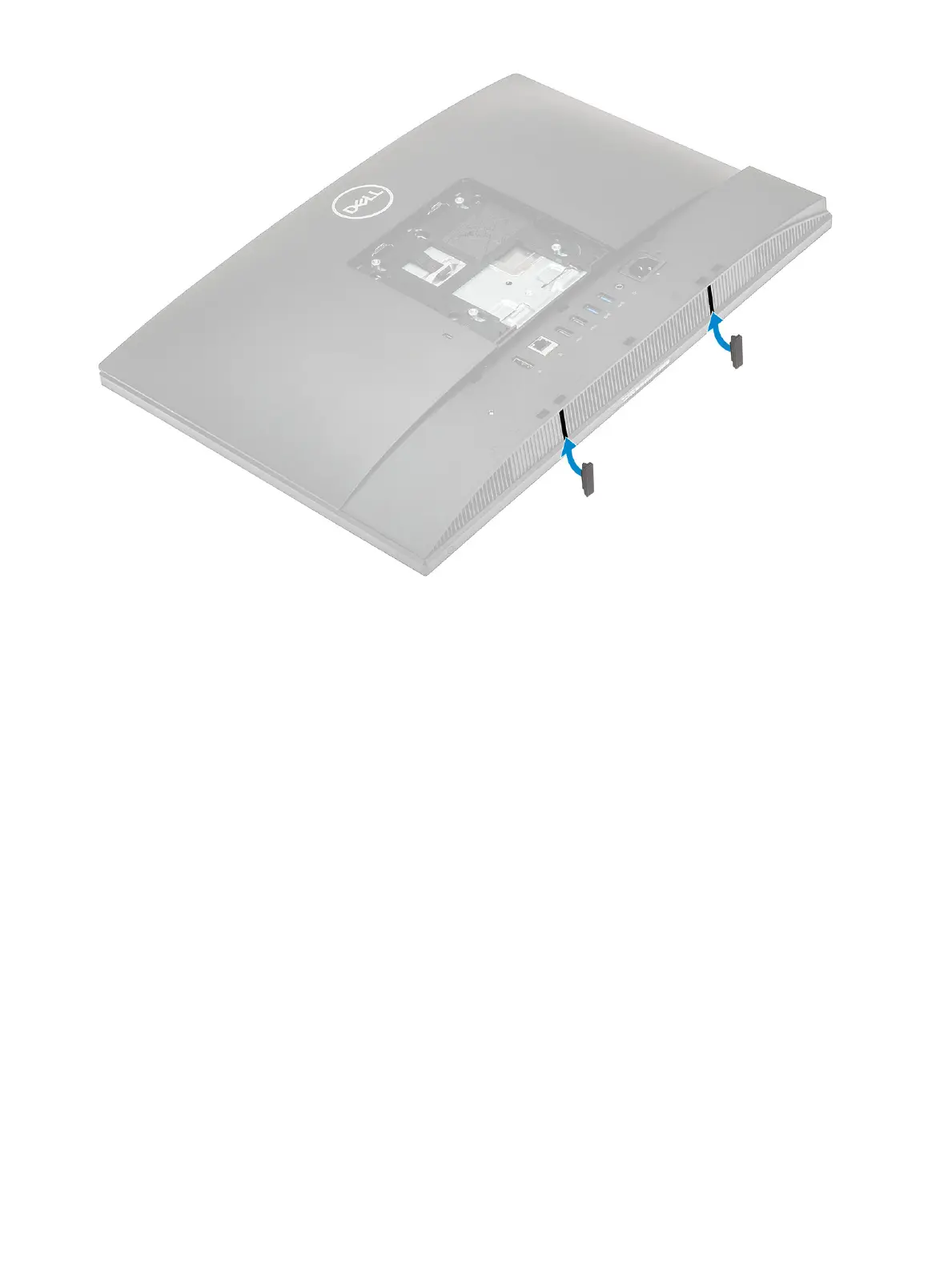

3 Remove the single (M3x9) screw that secures the cable cover to the base cover [1].
4 Lift the cable cover o the base cover [2].
Removing and Installing components
19
