Installing the power supply unit -PSU

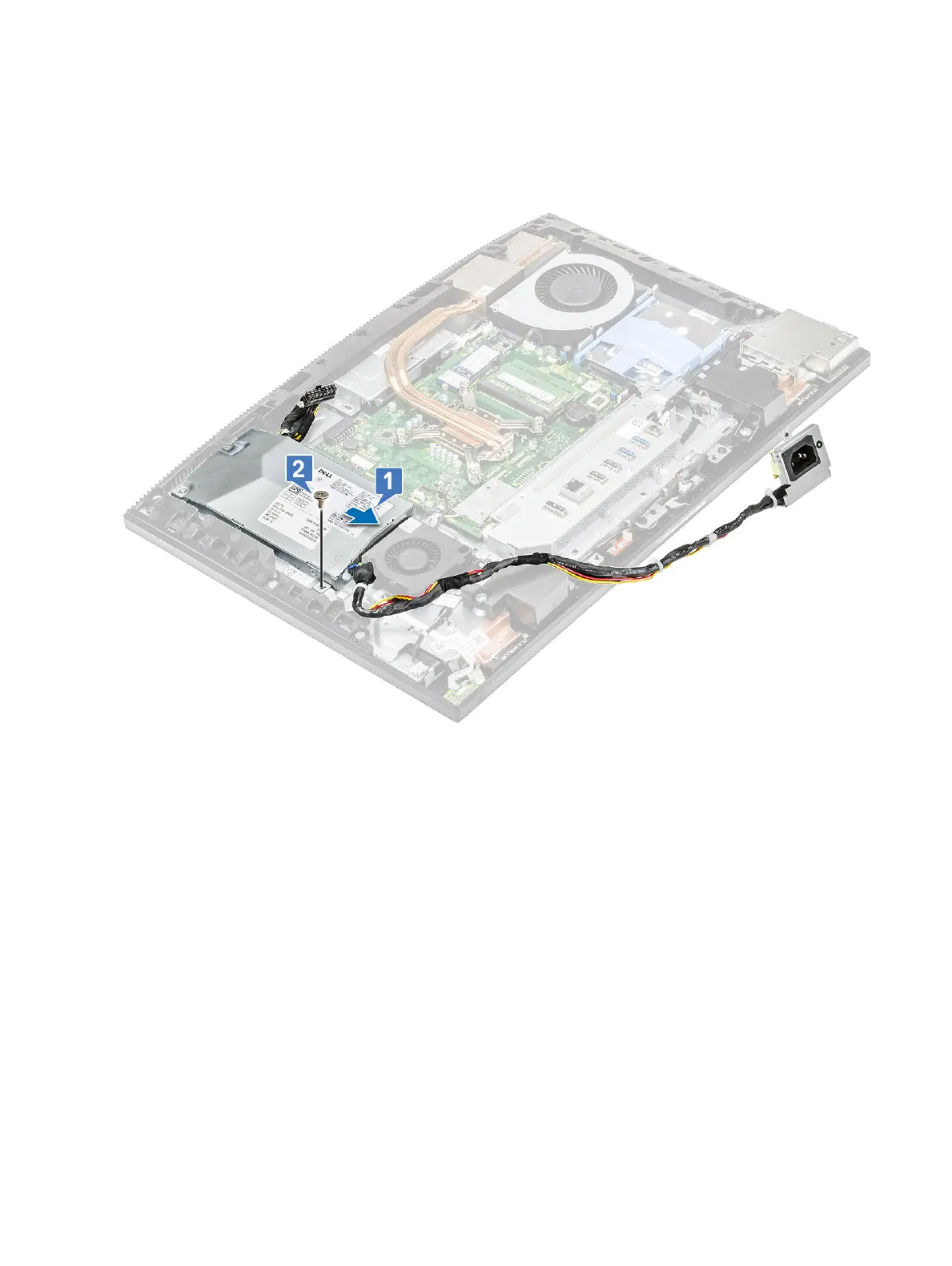

1 To install the PSU:
a Align and slide the PSU, in to the slot on the display assembly base [1].
b Replace the single screw (M3x5) that secures the PSU to the chassis [2].
2 To install the PSU cable:
a Connect the power supply cable to the socket on the system board [1].
b Route back the power supply cables through the retention clips in the I/O bracket [2].
c Slide and replace the power supply socket on the chassis [3].
d Replace the single (M3x5) screw securing the power supply socket to the I/O bracket [4].
62
Removing and Installing components
