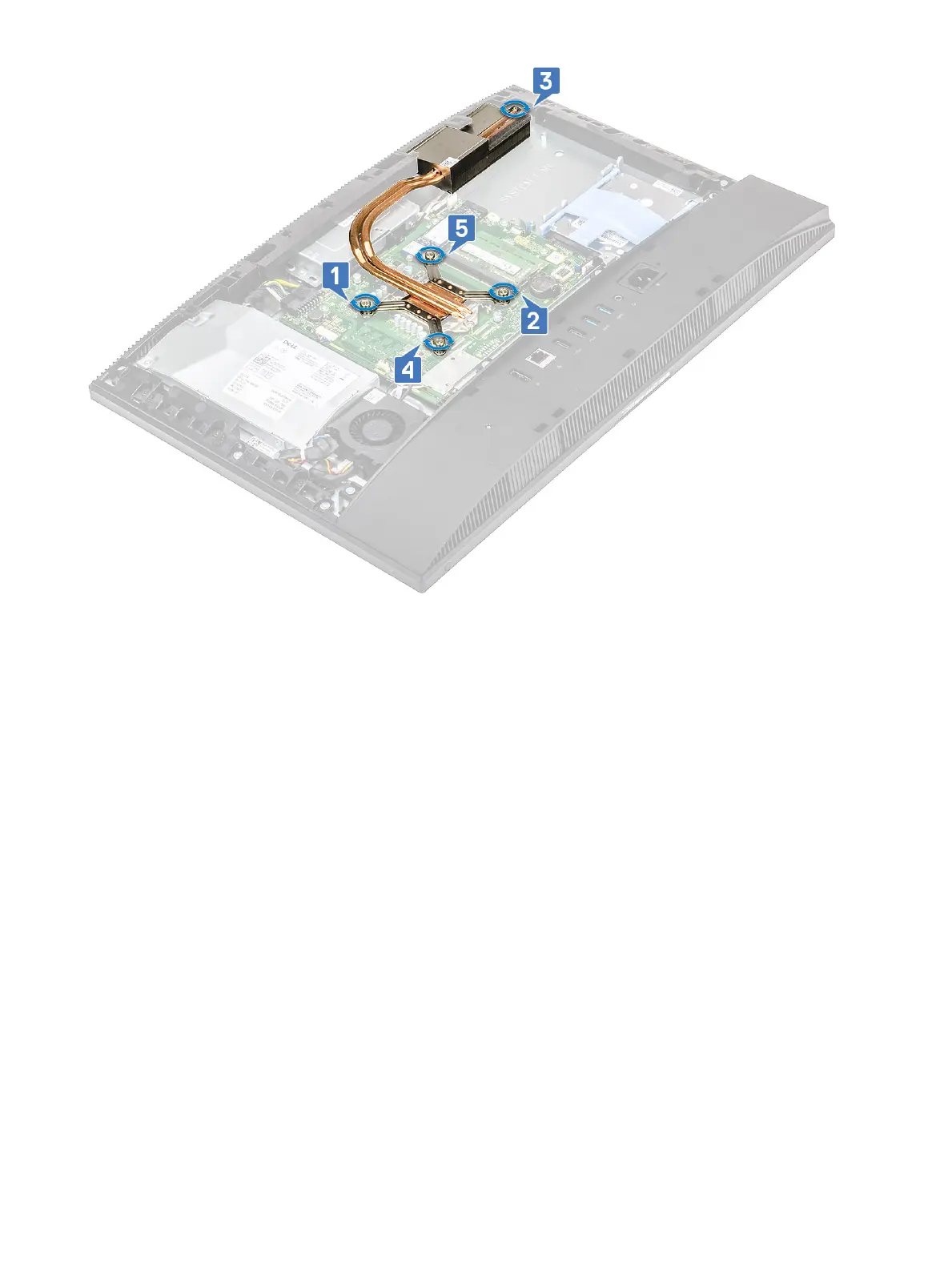

3 Install the following components:
a System fan
b System board shield
c Back cover
d Stand
4 Follow the procedure in After working inside your computer.
Pop-Up Camera
Removing the pop-up camera
1 Follow the procedure in Before working inside your computer.
2 Remove the following components:
a Stand
b Back cover
c System board shield
3 To remove the camera assembly cover:
a Remove the two screws (M3x5) that secure the camera assembly cover to the middle frame [1].
b Lift the camera assembly cover away from the middle frame [2].
c Disconnect the camera cable from the system board [3].
Removing and Installing components
47
