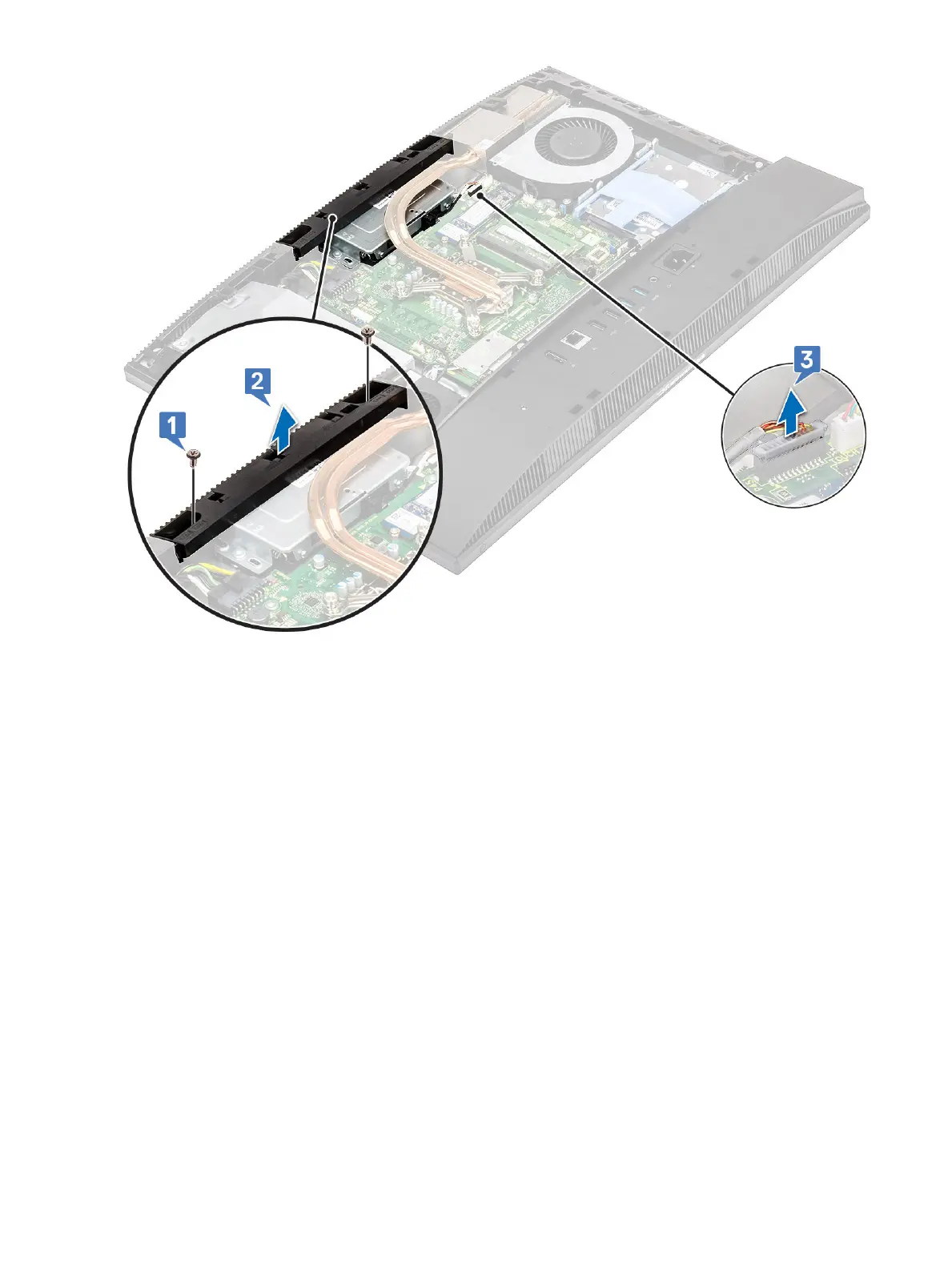

4 To remove the pop-up camera assembly:
a Remove the two screws (M3x5) that secure the pop-up camera assembly to the middle frame [1].
b Slide the pop-up camera assembly forward [2].
c To remove the pop-up camera assembly o the middle frame, unroute the camera cable from the routing channel [3].
